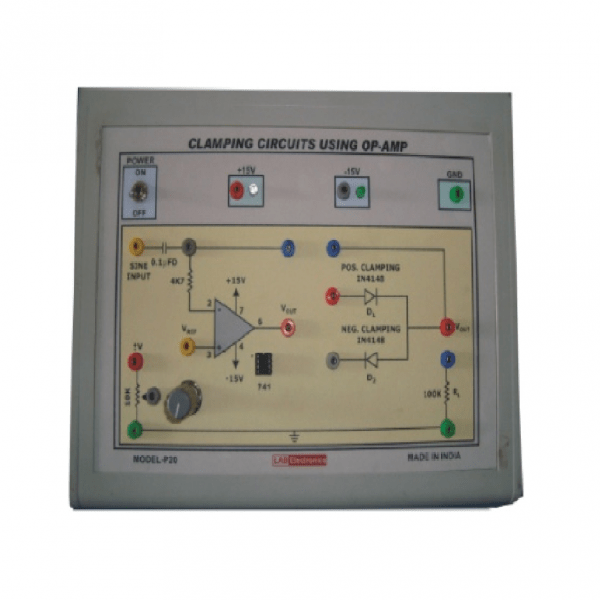

P-20 CLAMPING CIRCUITS USING OP AMP

 3,950.00

To show that the positive Clamper has a clamped DC level of the input signal at positive portion.  To show that the negative Clamper has a clamped DC level of the input signal at negative portion. To know the working of the positive/negative Clamper by varying the reference voltage.

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

FEATURES OF THE TRAINER:

Built in regulated power supply : +15V ,-15V/300 mA.

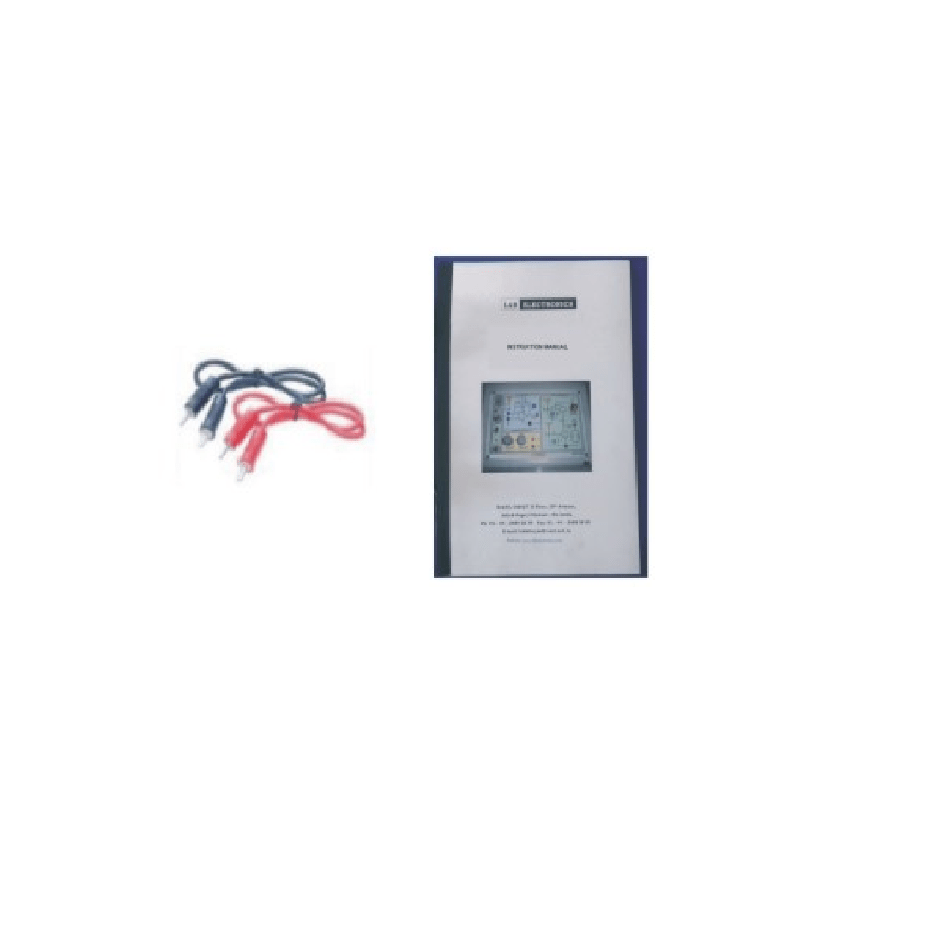

Instruction Manual : Step-By-Step detailed instruction manual.

Dimension : 27cmX 17cm X 10cm

Input Supply : 230V AC/50 Hz mains operated

Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.

Weight : 500 Gm.

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
