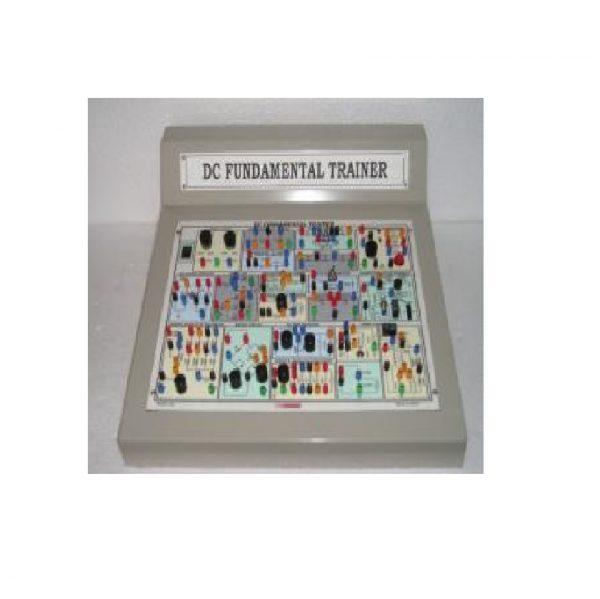

X33 DC FUNDAMENTAL TRAINER

The DC Fundamental Trainer provides comprehensive, hands-on instruction in the terminology, principles and applications of DC circuits following a carefully designed Instructional manual.
Topic Covers:
• Instrument familiarization
• Symbols and schematics
• Circuit Voltage
• Circuit Current
• Circuit Resistance
• DC Power Sources in Series and in Parallel Series
• Opposing DC Sources
• Identify Types of Switches
• Switching Concepts
• Ohm’s Law: Circuit Resistance
• Circuit Resistance
• Ohm’s Law: Circuit Current
• Ohm’s Law: Circuit Voltage
• Resistance in a Series Resistive Circuit
• Current in a Series Resistive Circuit
• Voltage in a Series Resistive Circuit
• Resistance in a Parallel Resistive Circuit
• Voltage and Current in a Parallel Resistive Circuit
• Resistance in a Series – Parallel Resistive Circuit
• Voltage in a Series – Parallel Resistive Circuit
• Current in a Series – Parallel Resistive CircuitPower in a Series Resistive Circuit
• Power in a Parallel Resistive Circuit
• Power in a Series – Parallel Resistive Circuit
• The Rheostat
• The Potentiometer
• Voltage Dividers
• The DC Ammeter
• The DC Ohmmeter
• The DC Voltmeter
• Troubleshooting DC Circuits
• Voltage Divider
• Voltmeter/Ammeter/Ohmmeter
Circuit Blocks:
• LDR characteristics
• Ohm’s Law
• Series Circuit
• Parallel Circuit
• Series/Parallel Circuit
• Measurement of Power
• Maximum Power transfer theorem
• Magnetism and electromagnetism
• Network theorem
• Linear/Non-Linear Variable Resistor Voltage Divider Voltmeter/Ammeter/Ohmmeter

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer:
Built in Regulated Power Supply
DC (+1.2V to +15V)/500mA,(-1.2v to -15v)/500mA
Power supply
Voltage range : AC 100V – 230 V
Frequency range : 50 – 60Hz
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
45cm x 45cm x 18cm
Weight
6 Kg (approx).
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily

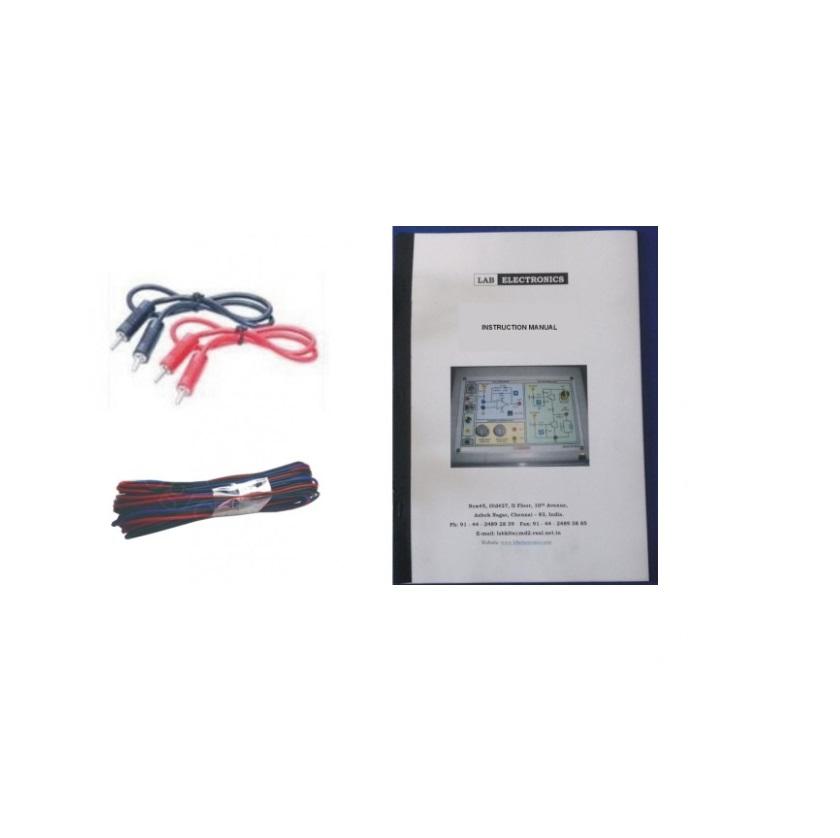

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
• Single strand wires.

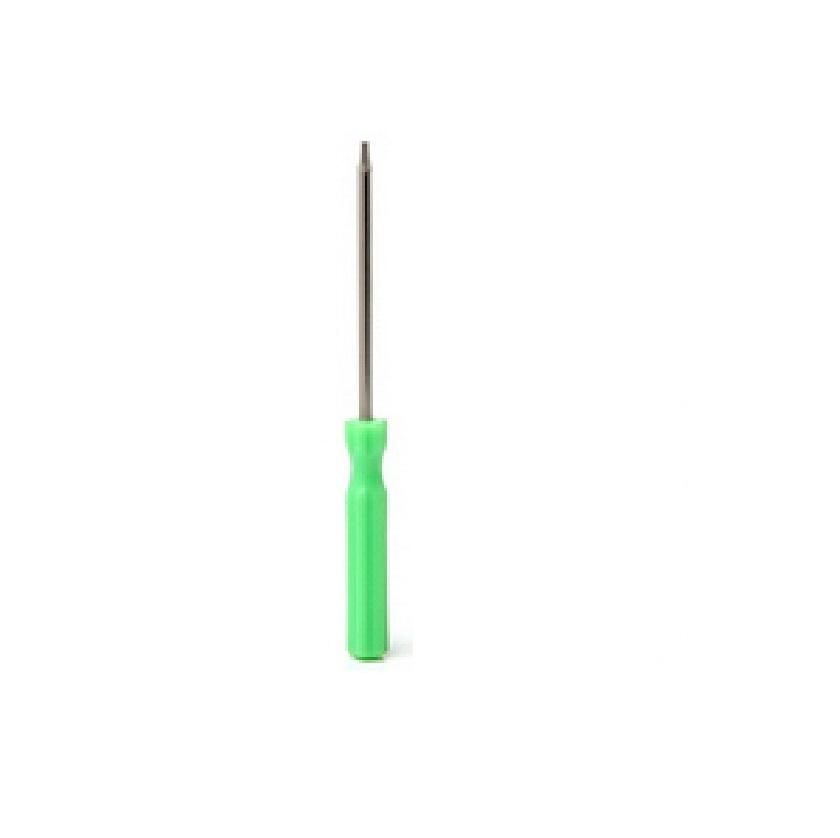

• Aligner.
