₹ 6,500.00

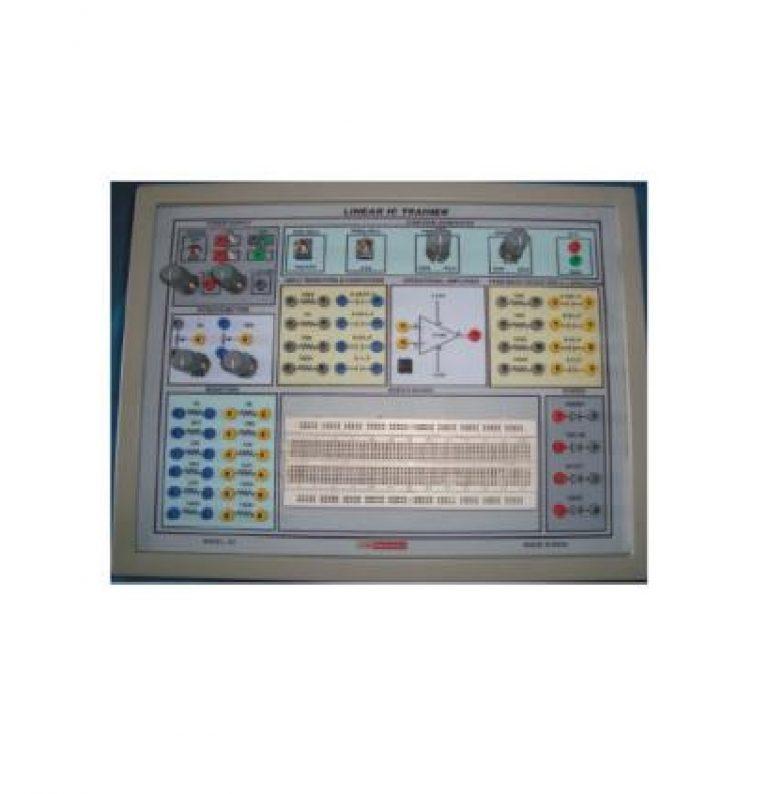

The lab Linear IC Trainer is a very versatile and completely self-contained laboratory instrument with built in regulated power supply. This trainer consists of one operational amplifier 741. The trainers comes with one bread board for experimentation purpose. Discrete components like different values of capacitors, resistors, silicon diode, germanium diode, zener diode, potentiometers 1K, 100K are provided.It has got a function generator. This will generate sine & square wave forms.
• Frequency range from 200Hz to 20KHz.
• Amplitude varies from 0 V to 10V

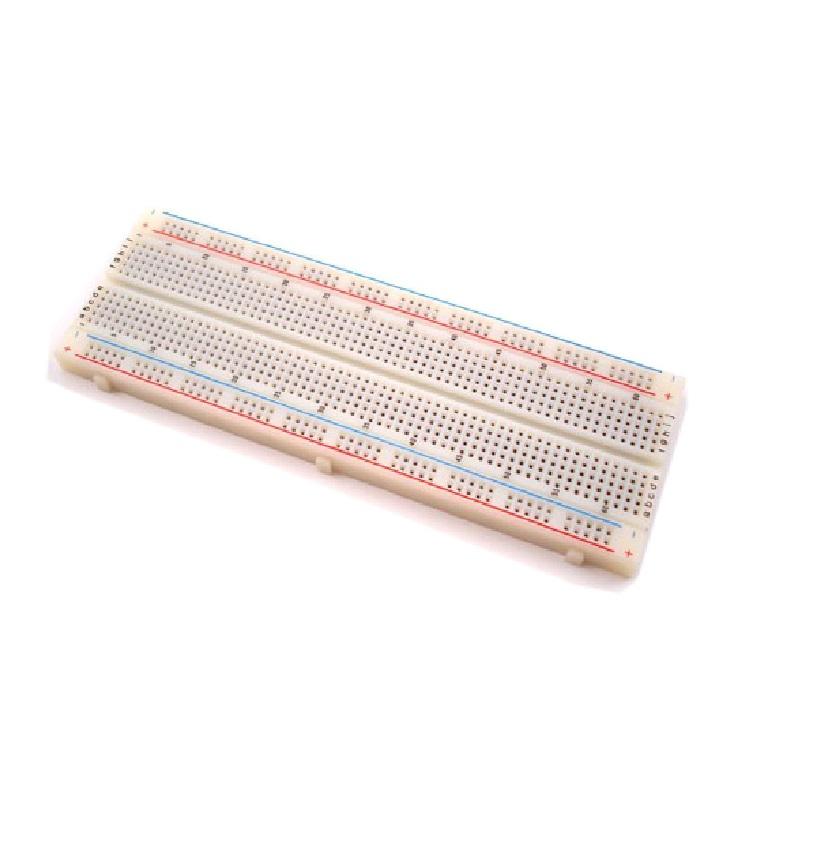

• This trainer comes with breadboard.
• All the basic experiments in linear electronics can be performed very easily. A detailed instruction manual with more than 25 circuits will be provided along with the trainer.
POWER SUPPLY SPECIFICATIONS
FIXED POWER SUPPLY +12V/500mA regulated power supply
-12V/500mA regulated power supply
+6V/500mA regulated power supply
VARIABLE POWER SUPPLY + (1.2V-30V)/250mA variable.
-(1.2V-30V)/250mA variable.
This trainer is single glass-epoxy printed circuit board.
This trainer is mounted on a strong sloping fiber cabinet.
DIMENSION – 28cms x 34cms x 10.5cmsWEIGHT -(Approx.) 1.5kgPOWER – 230V AC-Mains operated
