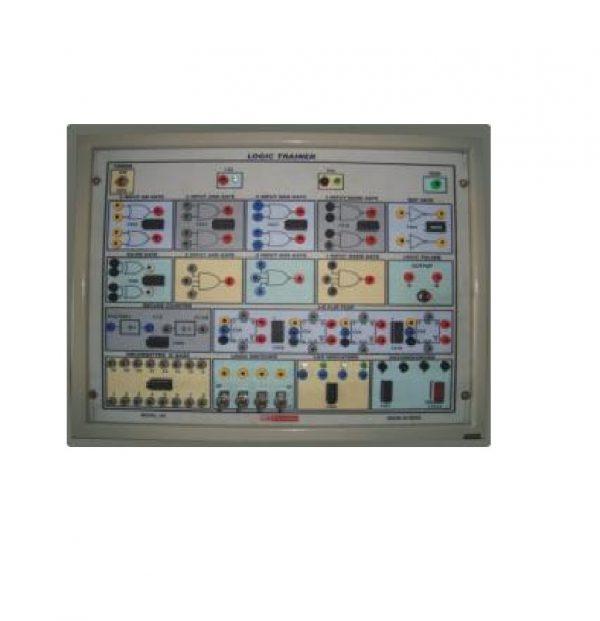

The LAB DIGITAL LOGIC TRAINER is a very versatile and completely self – contained laboratory instrument with built-in regulated power supply with short-circuit protection. This trainer consists of the fundamental logic gates like: AND gate, OR gate, NOR gate,EXCLUSIVE-OR gate, FLIP-FLOPS, DECODERS, MULTIVIBRATOR, DIGITAL DISPLAY, DECADE COUNTER etc.,
It has got several junction points, convenient points on the front panel to make combinational logic gates. It has got 4 logic switches for giving input to these logic gates and it has got 4 monitor lamps (logic indicators-LED’s)glows for logic high and it does not glow for logic low.
This trainer is a printed circuit board and all the symbols are screen printed on the front panel, so that it enables the student to conduct the experiment easily.
The trainer is provided with uncommitted IC base where all types of Digital characteristics can be studied.
This trainer is housed in a strong elegant metal cabinet.
SPECIFICATIONS:
POWER SUPPLY :+5V / 1 Amp
LOGIC STATE :Logic HI (1) at 5VÂ Logic LO (0) at 0V
LOGIC LAMP INDICATORS:
4 LED logic Indicators. 1 seven-segment digital display with built in decoder / driver.
DIMENSION :28cms x 34cms x 10.5cms
WEIGHT :5 Kg
POWER :230VAC / 50Hz mains operated
