Description

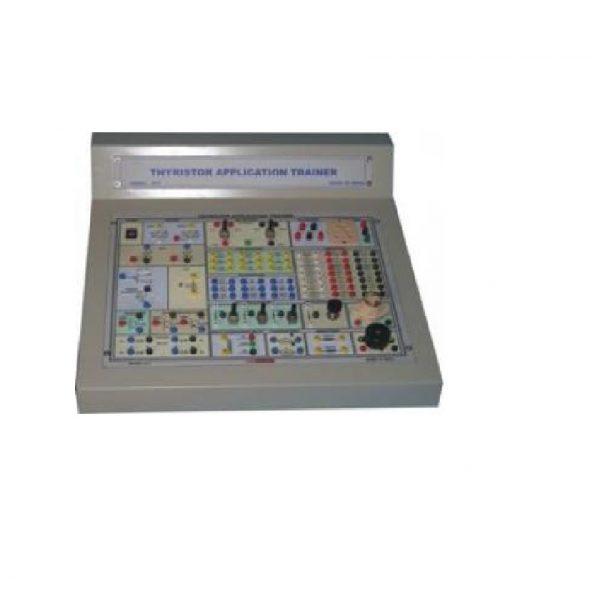

Features of the Trainer
• DC +5V/500mA fixed voltage source
• DC +15V/500mA fixed voltage source
• DC -(0-40)V/500mA variable voltage source
• AC (0-125) V fixed voltage source
• AC (30-0-30)V fixed voltage source
• All the components viz., resistors, capacitors and potentiometers are provided uncommitted to conduct many experiments.
• TRANSISTOR, POWER TRANSISTOR, UJT, LDR, DIAC, TRIAC, SCR, THERMISTOR, DIODES and INDUCTORS are also provided.
• Buzzer is provided as alarm
• 12V DC single change over relay is provided to use as switch
• 230V lamp is provided in this trainer as load.
• 3 Pin AC socket is provided to connect loads like motor, driller, etc., externally.
List Of Experiments:
• UJT CHARACTERISTICS
• SCR CHARACTERISTICS
• PHASE CONTROL OF AN SCR
• SPEED CONTROL OF MOTOR USING SCR
• CONSTRUCTION OF AN SCR TRIGGERING CIRCUIT USING LDR
• SINGLE PHASE HALF & FULLY CONTROLLED BRIDGE RECTIFIER USING SCR
• DIAC AND TRIAC CHARACTERISTICS
• SPEED CONTROL OF MOTOR USING TRIAC
• LAMP CONTROL USING DIAC AND TRIAC
• RELAY CIRCUITS USING PHOTO DEVICES

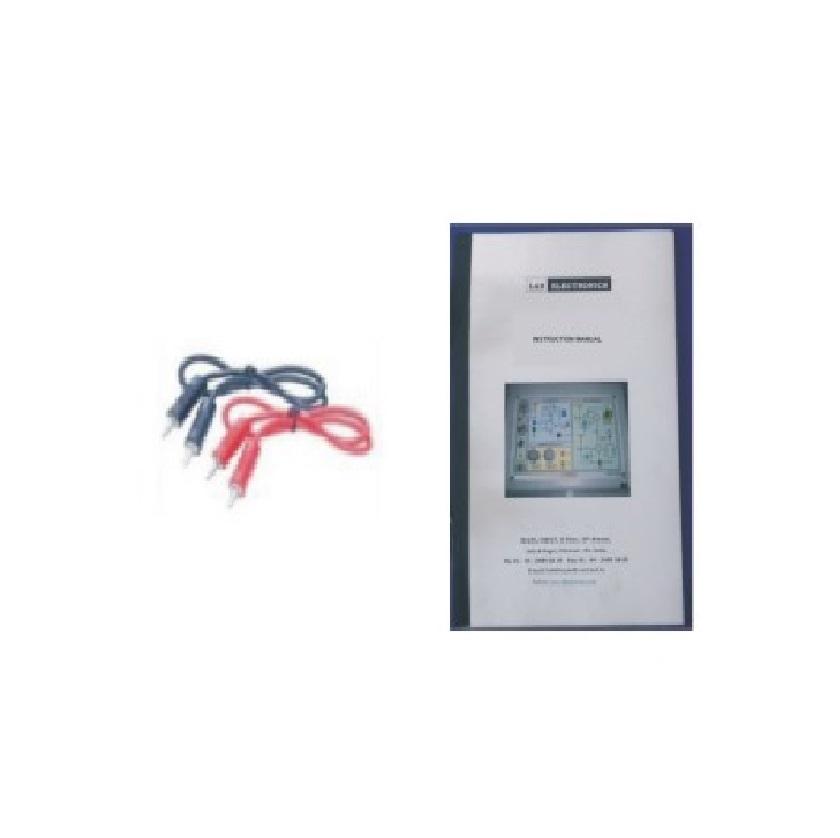

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Step-By-Step detailed instructions are provided with the instruction manual.
• DC 6V lamp
• AC 230V lamp
