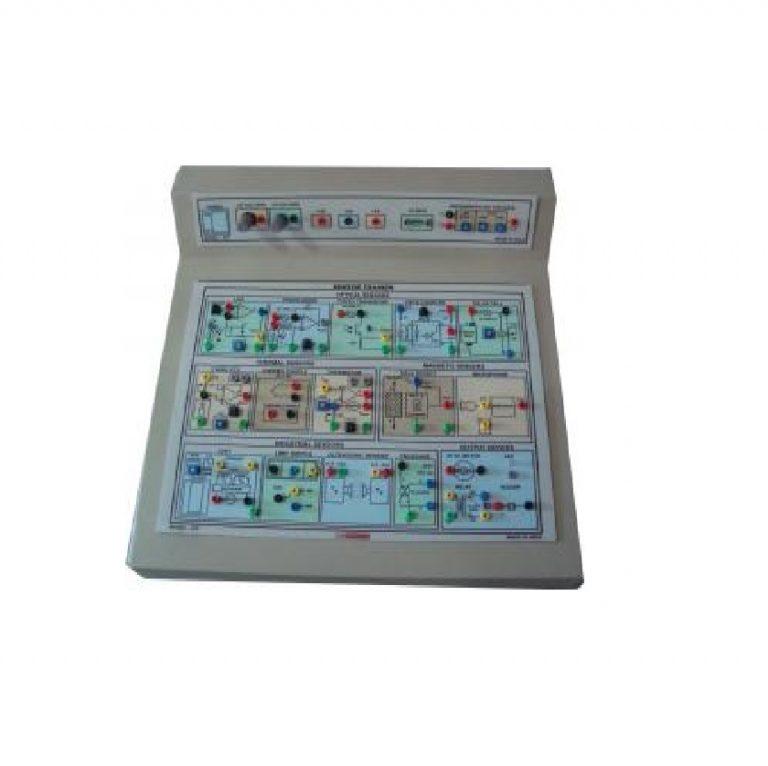

X-37 SENSOR TRAINER

To Study the characteristics of various sensors viz Industrial sensors, Optical sensors, Thermal sensors and magnetic sensors.
List Of Experiments
• To study LDR as part of a voltage divider.
• To study LDR being used as part of the resistive feedback network of a non-inverting op-amp circuit.
• To study the photodiode characteristics.
• To study photodiode in its PHOTOVOLTAGE MODE driving an op-amp.
• To study photodiode in its photoconductive mode as part of a voltage divider circuit.
• To study the phototransistor characteristics.
• Observe the operation of an opto coupler IC.
• Demonstrate the logic level conversion using an opto coupler.
• Show the isolation provided by an opto coupler.
• To study of Solar Energy .
• To study the solar cell when placed in direct sunlight or close to incandescent light bulbs generate power similar to batteries.
• To study the 2 Wire RTD In A Potentiometer Circuit
• To study the characteristics of thermocouple.
• To observe the change in output voltage with the change in temperature.
• To study the characteristics of thermistor
• To study the Magnetic Amplifier with the help of HALL EFFECT principles. HALL EFFECT occurs as current flows through a semiconductor material in under the influence of a magnetic field.
• To study the Characteristics of Dynamic Microphone
• To study the LVDT characteristics. The built in 4KHz oscillator generates sine wave. The LVDT produces a difference when we apply force to it and it is rectified
• Study of LIMIT SWITCH
• Study of ULTRASONIC SENSORS
• Study of PRESSURE SENSOR
• Study of INSTRUMENTATION AMPLIFIER

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer
Power supply
Voltage range : AC 100V – 230 V
Frequency range : 50 – 60Hz
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
45 cms X 45 cms X 18 cms.
Weight
6 Kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
• Solar Cell

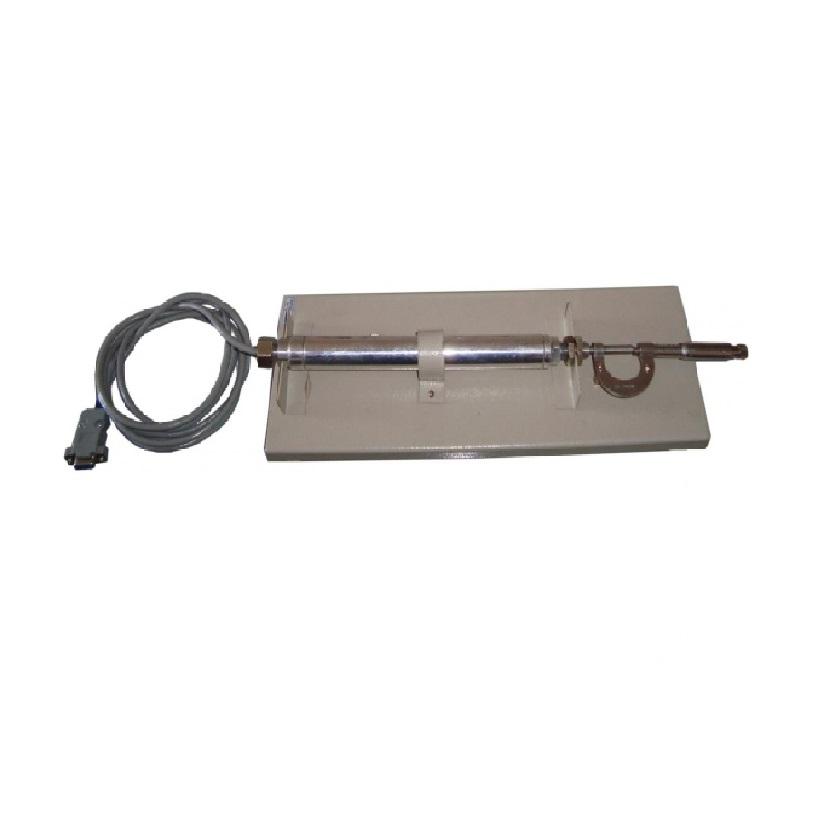

• LVDT.
• Thermistor.

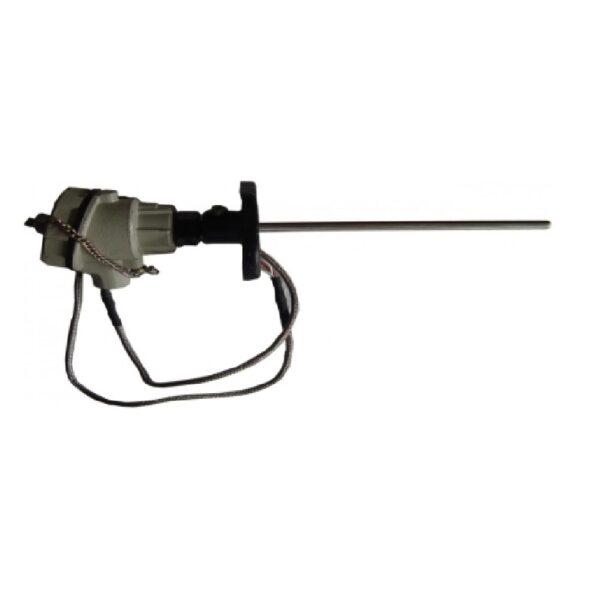

• Thermocouple

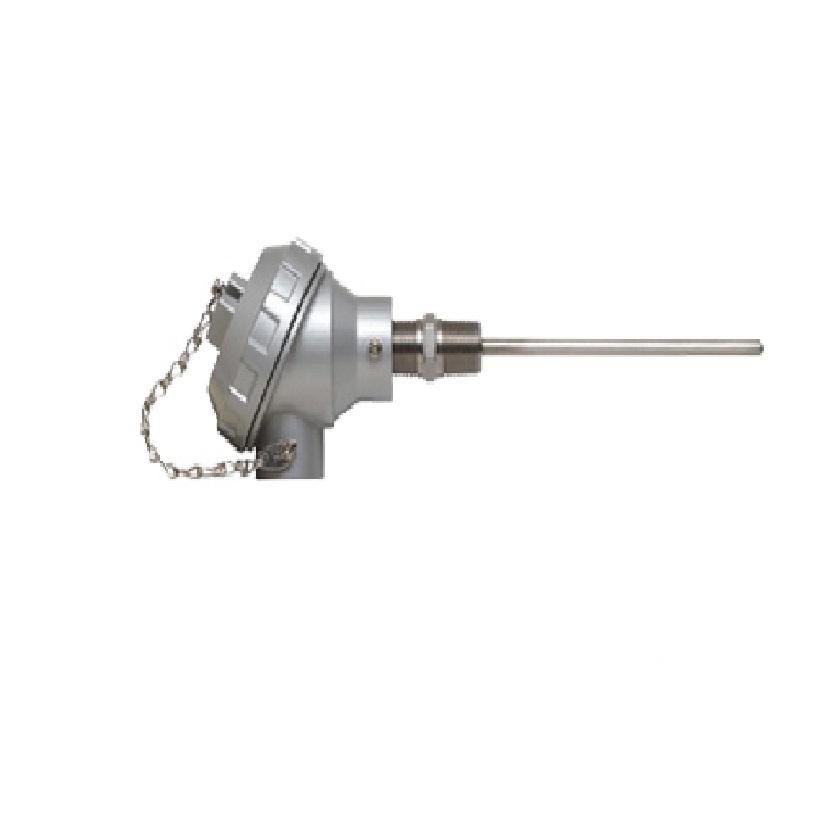

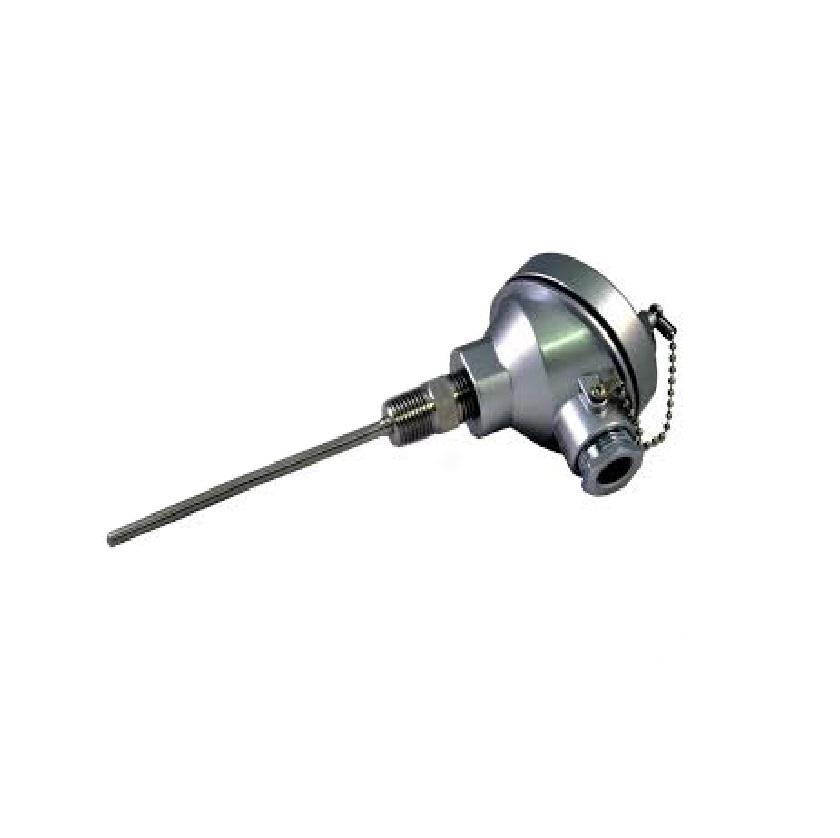

• RTD.

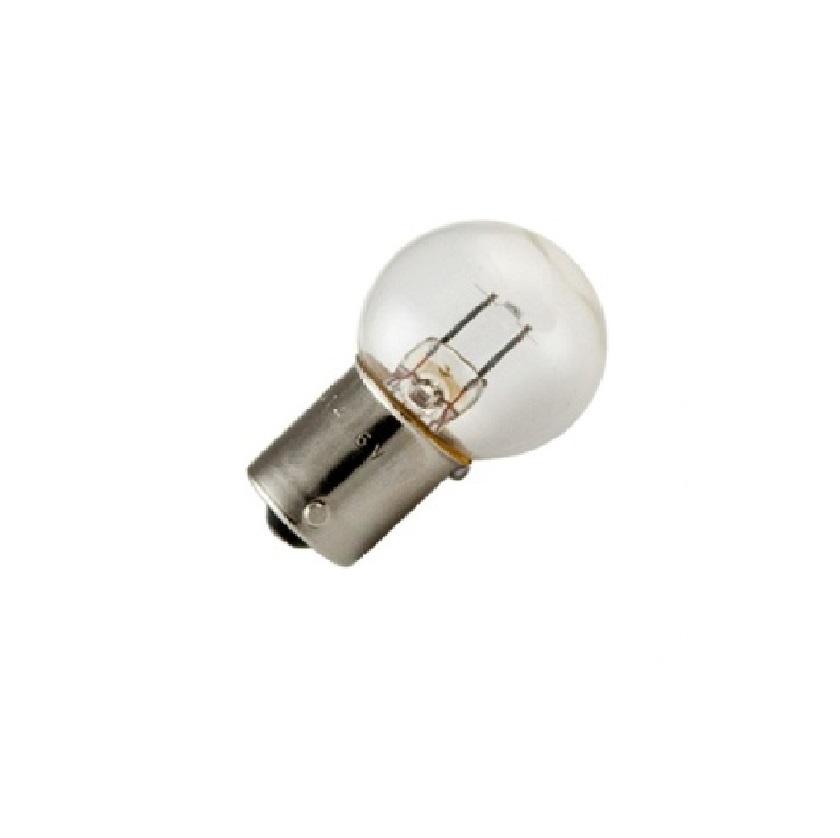

• 6 V Bulb.
• Multimeter.
• Thermometer.
• Microphone.
• Limit Switch.
• DC Motor.
