X-36 DIGITAL & ANALOG ELECTRONICS TRAINER

To conduct various experiment in Analog & Digital Trainer.
Introduction:
• Lab “Digital & Analog Trainer ” is a versatile and self-contained instrument. It is very useful in electronics laboratory. X36 is a single printed circuit board with legends neatly screen printed on the front side and all the components are soldered on the back side of the PCB to avoid tampering of fixed components like resistors, capacitors, transistors, diodes, and variable components like potentiometers are mounted on the front side of the PCB for making linear measurement.
Function Generator:
• Function output: Sine, Square, and Triangle.
• Amplitude: (0-10)V(P-P) .
• Logic Pulser: HI/LO DR bouncing Pulser.
• Input Switches: 6 Logic Switches.
• Output Indicators: 6 LED Indicators.7-segmentLED display Decoder/Driver.
• Potentiometer: 1K,100K.
• Op-amp:3 terminal 741op-amp
• Timer: 555 – Timer
• Bread board: 1No.
• Capacitors: 8-different Values.
• Resistors: 8-different Values.
• Diodes: 1n4001 – 2Nos.
• Zener: 5.1V;9.1V.
• Transistors: SL100;SK100
• Socket: 2mm Plugs/connection/test points.
• Interconnection: 2mm Plugs with cross hole.

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer:
Built in Regulated Power Supply
Fixed DC: +5V/500mA,-5V/500mA.
Variable DC: +(1.2-15)V/500mA,-(1.2-15)V/500mA.
Power supply
Voltage range : AC 100V – 230 V
Frequency range : 50 – 60Hz
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
45cm x 45cm x 18cm
Weight
6kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
Accessories:

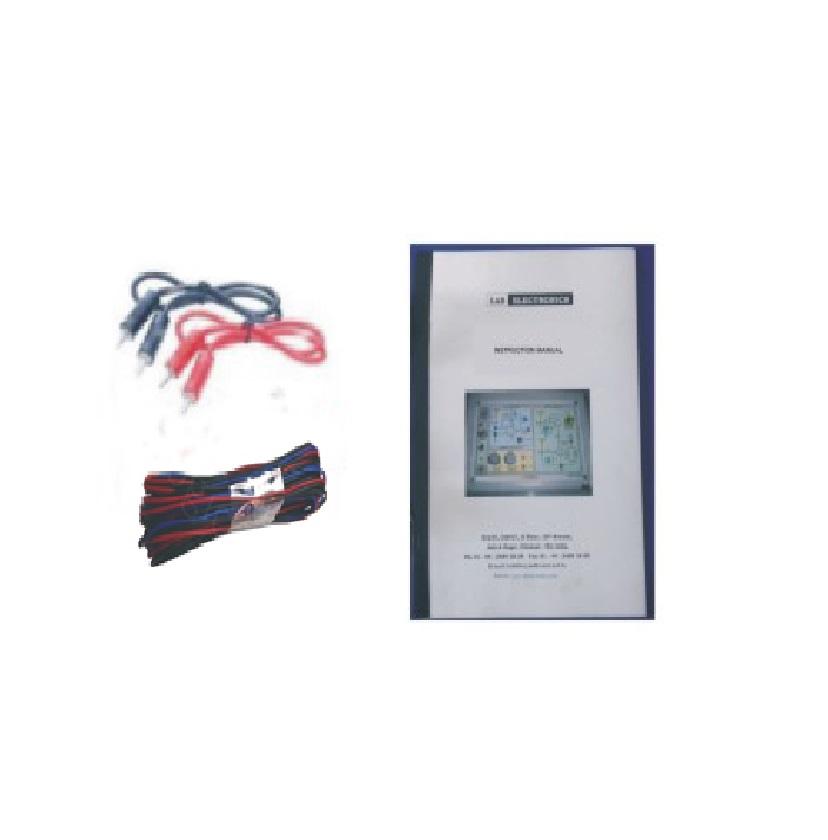

• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
• Single strand wires.
