List of Experiments:
• AMPLIFIER (INVERTING,NON-INVERTING)
• INTEGRATOR
• DIFFERNTIATOR
• VOLTAGE FOLLOWER
• SUMMER & SUBTRACTOR
• WIEN BRIDGE OSCILLATOR
• SCHMITT TRIGGER
• VOLTAGE TO FREQUENCY CONVERTER
• FREQUENCY TO VOLTAGE CONVERTER
• PRECISION HALF WAVE & FULL WAVE RECTIFIERS
• INSTRUMENTATION AMPLIFIER
• MULTIVIBRATORS USING 555 TIMER (ASTABLE, BISTABLE & MONOSTABLE)
• ACTIVE LOW PASS FILTER
• ACTIVE BAND PASS FILTER
• UNIVERSAL ACTIVE FILTER
To improve comprehension
• Adjustable variable power supply (0 – 30)v
• Fixed dc supply : +15v,-15v,+5v.
• Equipped with two analog meters and no external tester is needed power supply is equipped
Features of the Trainer
Built in Regulated Power Supply
DC (+l5V,-15V),+5V/ 500mA peak to peak ripple:10mVmax
Power supply
Voltage range : AC 100V – 230 V
Frequency range : 50 – 60Hz
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
45cm x 45cm x 18cm
Weight
6kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily

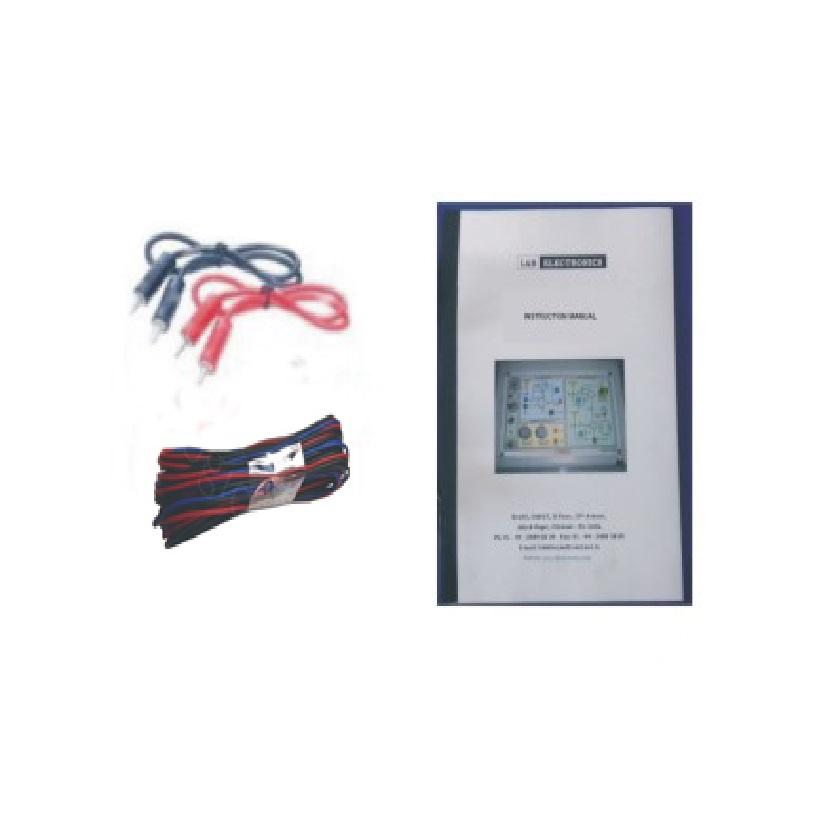

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
Single strand wires.
