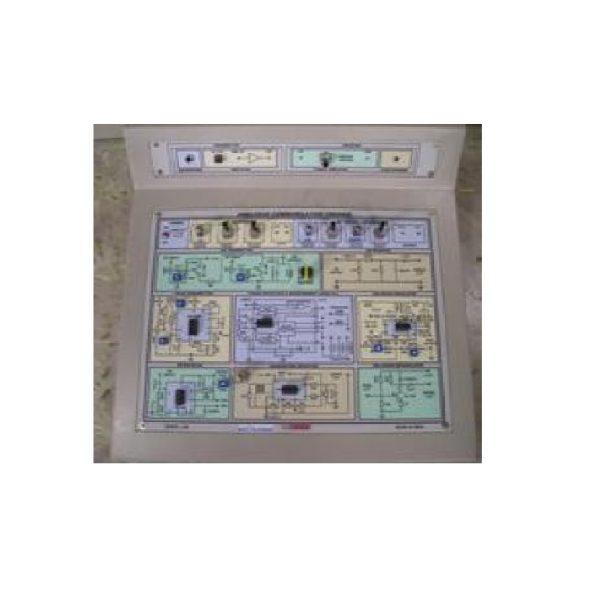

X-29 ANALOG COMMUNICATION TRAINER

GENERAL INTRODUCTION:
The Analog communications course provides comprehensive, hands-on instruction in the terminology, principles and applications of analog communications. In this course, students receive hands-on circuit training and acquire skills to measure radio signals with an oscilloscope. Students also learn the functions of oscillators, filters, amplifiers, LC networks, modulators, limiters, mixers, and Detectors in communication circuits. Lab Analog Communication Trainer is a very versatile and completely self-contained laboratory instrument built in regulated power supply with short circuit protection. This trainer consists of the following fundamental circuits.
• Analog communication concepts
• Circuit board Familiarization
• Frequency and phase Modulation/demodulation
• Demodulation (quadrature Detector)
• Amplitude Modulation /demodulation
• PLL circuit and operation
• Balanced modulator/Balanced demodulation

LIST OF EXPRIMENTS
The trainer consists of the following experiments:
• Amplitude modulation/demodulation
• Pulse Amplitude Modulation
• FM modulation / demodulation
• Quadrature detector (demodulation)
• Balanced modulation and demodulation
• Phase Modulator(PM)
Phase detection measurement using PLL

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer
Built in Regulated Power supply
DC +12V/500 mA, 5V/500 mA.
Power supply
Voltage range : AC 100V – 230 V
Frequency range : 50 – 60Hz
AF Oscillator
Frequency: (20Hz TO 2KHz).
Amplitude: 10V (P-P).
RF Oscillator
Frequency :min 2 KHz to max 200 KHz.
Function
SINE/SQUARE
Amplitude: 0-10V(P-P).
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
45cm x 45cm x 18cm
Weight
6kgs



Accessories:

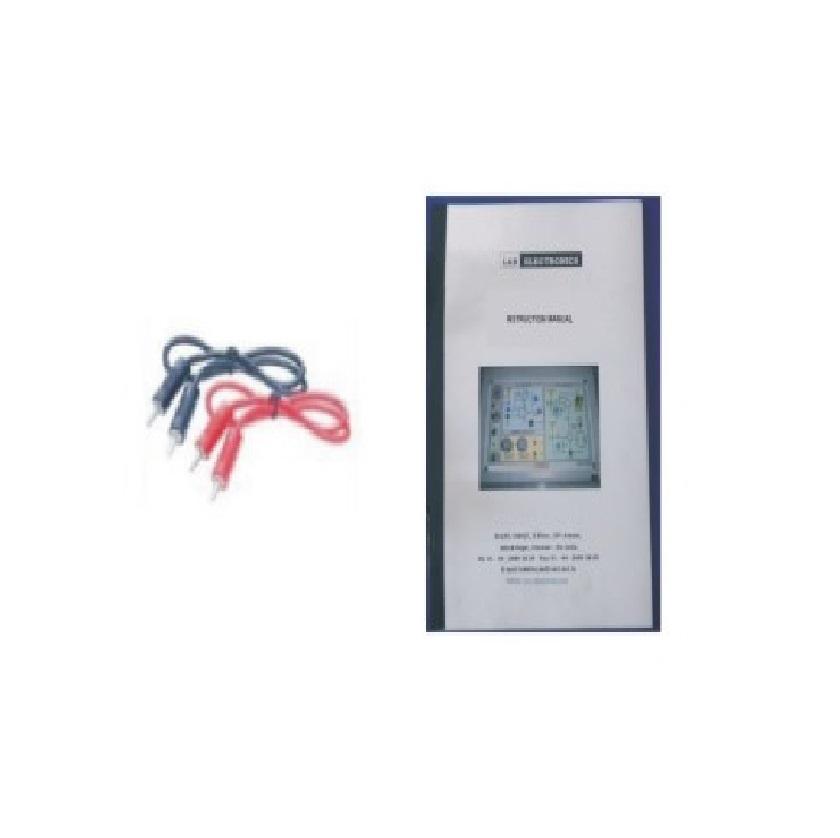

• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.

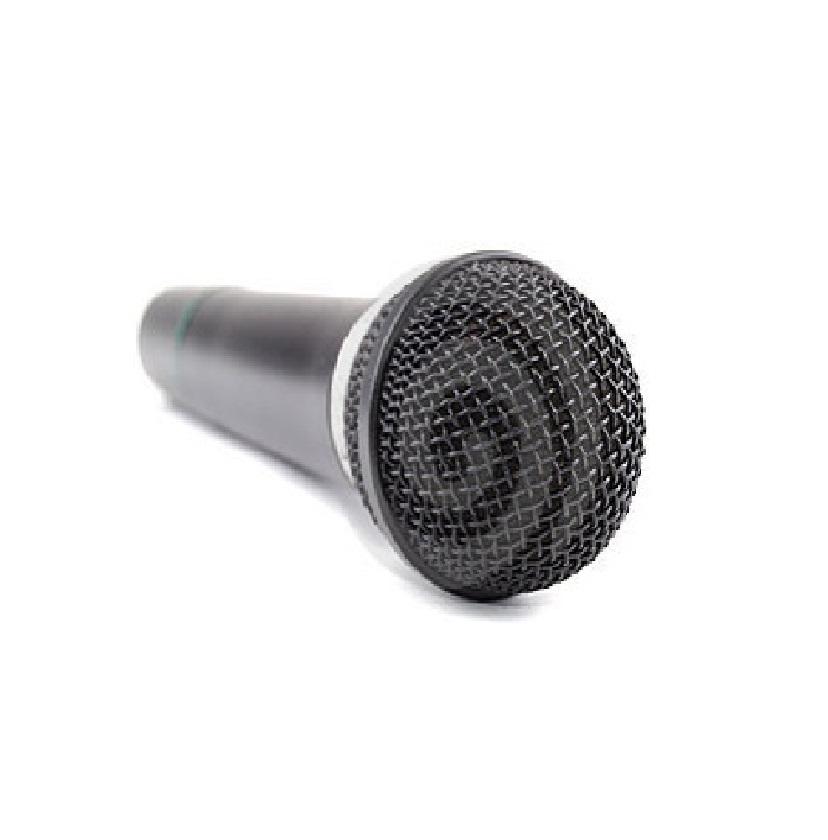

• Mic.

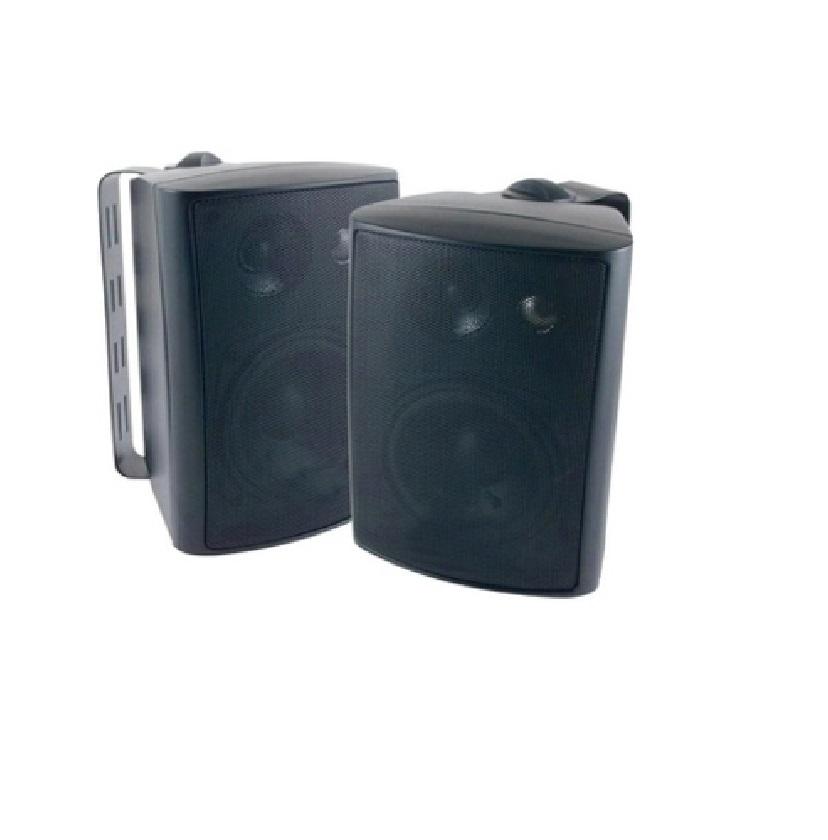

• Speaker.
