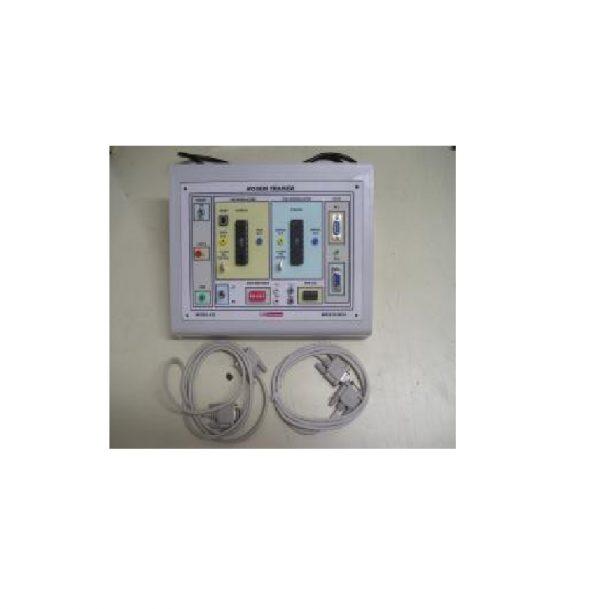

X-28 MODEM TRAINER
Category Special!
🚚 Delivery within 14 days
To demonstrate basic operation of a FSK data modem (9600 Baud rate) with RS232 interface with two pc using LAB modem software
SYSTEM REQUIREMENTS:
o Pentium compatible processor
o Operating system: Windows XP
o Interface: RS232 connector.
o CD-ROM drive.
o COM port DB-9 pin .
INTRODUCTION:
Lab modem trainer is a very competent trainer. You can Send and receive data Using computer. Modems are not needed to connect two compat¬ible digital devices directly; the transmission never needs to cross analog lines, such as telephone lines, But you do need an inter¬face to handle the exchange (readiness establishment, data transfer, receipt, etc.), just as an EIA-232 DTE-DCE cable does. This circuit implements a simple FSK modem, consisting of both the frequency shift keying modulator a corresponding demodulatorTo demonstrate basic operation of a FSK data modem (9600 Baud rate) with RS232 interface with two pc using LAB modem software
Description
DETAILED SPECIFICATION:
This trainer can be able to study the investigation of all main aspects, which relate to Compact in nature, which has following features :
• Test points
• Microcontroller Based
• Two Mode Operation ( microcontroller and pc mode operation)
• RS 232 PORT option for two PC
• 8 bit Data output
• Power Requirement : 230V/ 50HZ
• Each section is printed on the multi coloured front panel for the students to understand each section thoroughly 2mm multicolour terminals are provided for interconnections.
• This trainer comes with multi-coloured front panel designed with the aid C.A.D.
• Dimension : 29cm x 20cm x 11cm
• Weight : 1.5Kgs (Approx.)
Accessories:
• Serial cable connectors.

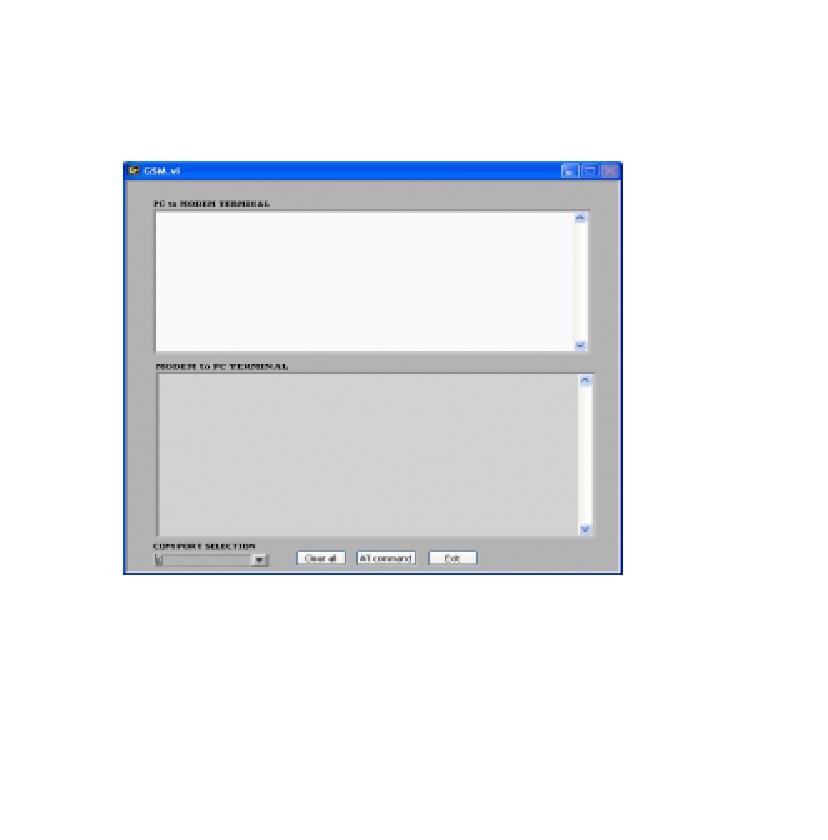

• Lab Modem Software CD.
• Instruction Manual: This trainer comes with experimental manual.
