GENERAL FEATURES :
• Speed control of a 12V/2A, 25W permanent magnet D.C. Motor
• Speed range: 0 to 2000 rpm ( typical)
• Opto-interrupter based speed sensing
• RPM and frequency display using LCD.
• Electronic tachogenerator for feedback

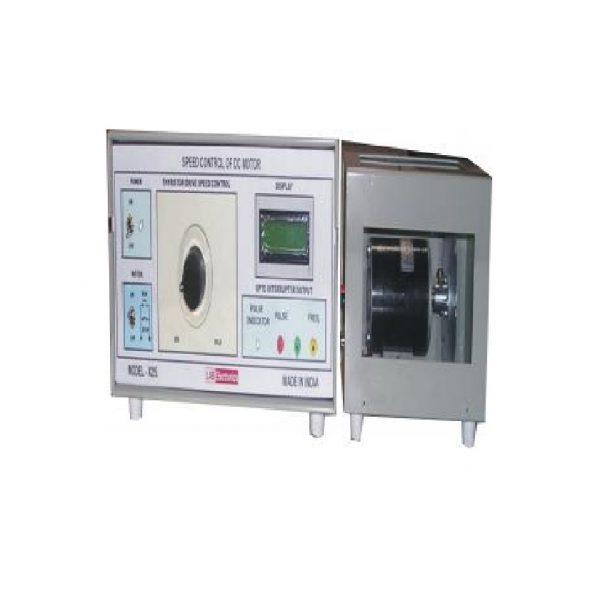

• Separate unit for motor in a see-through cabinet
• Smooth, non-contact eddy current brake
• 220V ± 10%, 50 Hz mains operation
• Instruction manual
• Patch cords
SPECIFICATION OF PMDC MOTOR :
Power
25 Watt
RPM
2000(max)
Armature current
2.0A
Torque
1.2 kg-cm
Weight
1.2kg
SPECIFICATION OF PMDC MOTOR DRIVES :
Input supply
230 V AC/ 50HZ,
Operating Supply
+12 VDC
O/P Speed Adjust
0-2000 rpm (typical)
Protections
Over Load, Over Voltage, Short Circuit,Fuse
Drive
High speed PWM, with thyristor control.
Capacity
2 A /25 W
FEATURES OF THE TRAINER:
Input Supply
230VAC.
Housing
It is mounted in a elegant cabinet for better viewing and portability.
Dimension
330mm x 260mm x 120mm.
Weight
3Kg (Approx)
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual
