Description
Features of the Trainer
Input Supply
Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
AF Oscillator:Function
Sine.
Frequency X1
20Hz to 200Hz.
X10
200Hz to 2KHz.
Amplitude
0-10V (P-P).
RF Oscillator:Function
Sine/Square.
Frequency X1
2KHz to 20KHz.
X10
20KHz to 200KHz.
Amplitude
0-10V (P-P).
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
45cm x 45cm x 18cm
Weight
6kgs

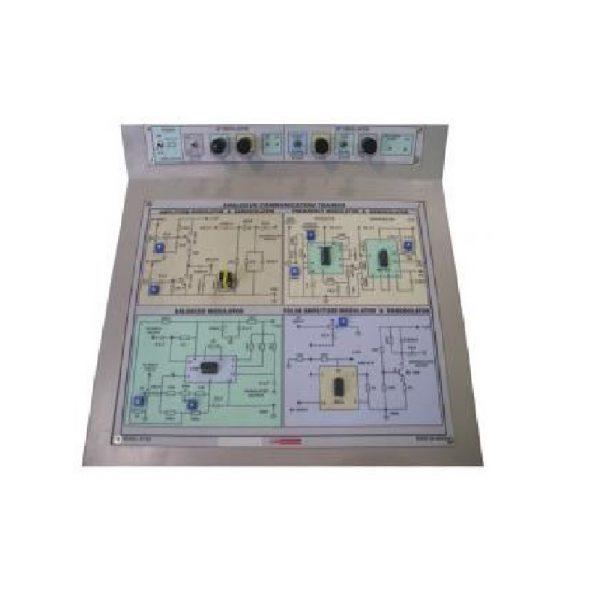

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.

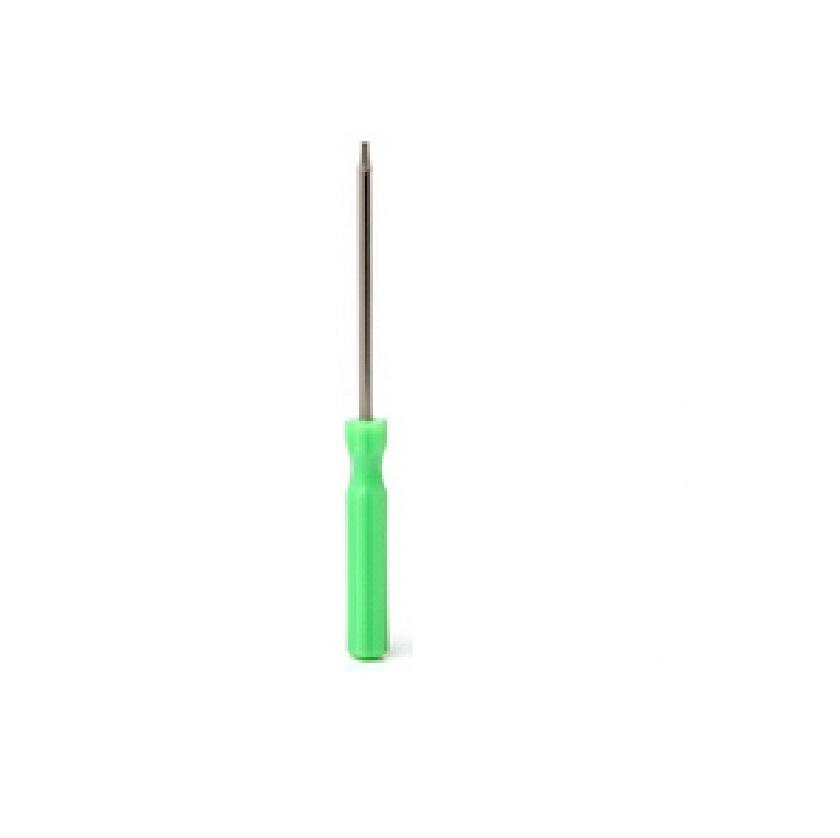

• Aliner
