Special Effects:
• Coil & Shape Plastic fibers with different devices such as spools, pencils, etc.
• Studying the characteristics of fiber materials in hot water.
• Creating minute sparkle points on your plastic fiber to enhance lighting effect.

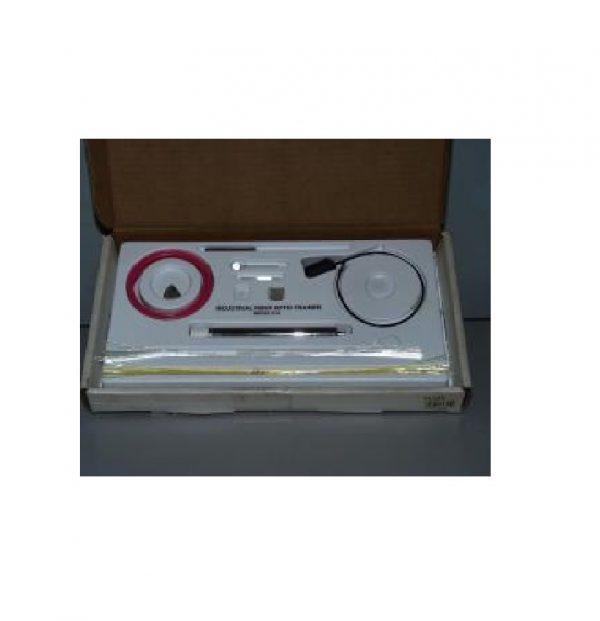

Using these effects with your plastics guides, perform the same experiments as those conducted with your glass guides. Important fiber associated elements that come with the Trainer:
• 2 cells penlight source (less batteries)
• Ball magnifier
• Image Stone
• ” sq. glass plate
• Lens Plastic
• Image guide
• Light hood adapter
• ” sq. fiber optics face plate

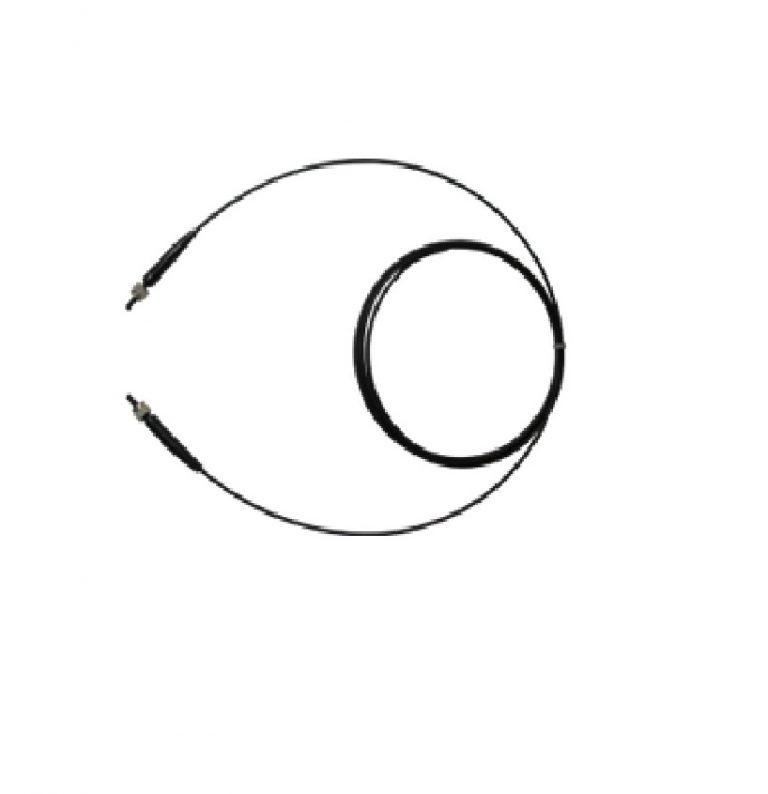

• 5 ft. glass light guide (0.40′ bundle)
• 1 ft. glass fiber (0.18 dia.) more than 2000 fibers
• (20) 1 ft. Ig. assorted col. plastic fibers .020 dia.
• 4″ lg. clear heat shrink 2 rigid heat shrink 1 ” long pieces
• 10″ – 12″ finished glass light guide
Features of the Trainer:
Input Supply
Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
42.5cms x 36cms x 10.5cms
Weight
(Approx.) 1KG
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
Accessories:
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
