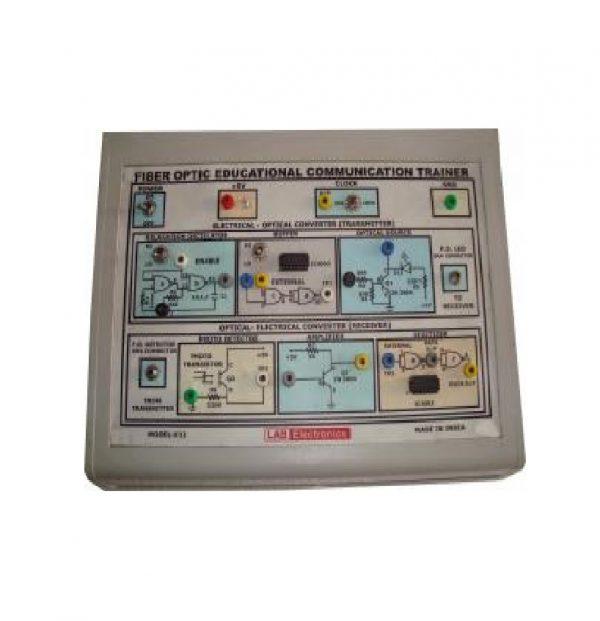

X-12 FIBER OPTIC EDUCATIONAL COMMUNICATION KIT

• To provide you hands-on experience with constructing basic fiber optic receivers, transmitters and cable interfaces, not unlike those used by telephone companies.
• To learn how and why light can be “captured” and transmitted by lengths of optical fiber.
• To study the basic information for understanding more sophisticated discussions and demonstrations of fiber optics in action.
Description:
• 1Lab Fiber Optic Educational Kit is an introduction to Fiber Optic Communications
• No prior experience is required to operate it
• It contains all the components for building fiber optic data link including a LED, Detector, Fiber Optic Connectors, Interfacing Electronics and one meter of Fiber Optic Cable
• Termination of the plastic fiber optic cable requires the use of just a simple, sharp knife.
• The instruction booklet covers the theory of operation, references glossary and some simple experiments.
• It is the ideal kit for beginners, hobbyists or a student of fiber optics
• This fiber optic link can be extended upto 16 meters, making it useful for short-distance optical isolation applications and science fair projects.

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer
• Integrated Devices &amp Connectors
• One-minute Fiber Terminations
• Transmitter Oscillator for Testing
• Matched Emitter and Detector
• TTL/CMOS Input Compatible
Built in regulated power supply
DC +5V/1A
Power Supply
Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
Housing
It is mounted in an elegant ABS Plastic cabinet for better viewing and portability.
Dimension
29cm x 20cm x 11cm
Weight
1.5kgs
• This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.

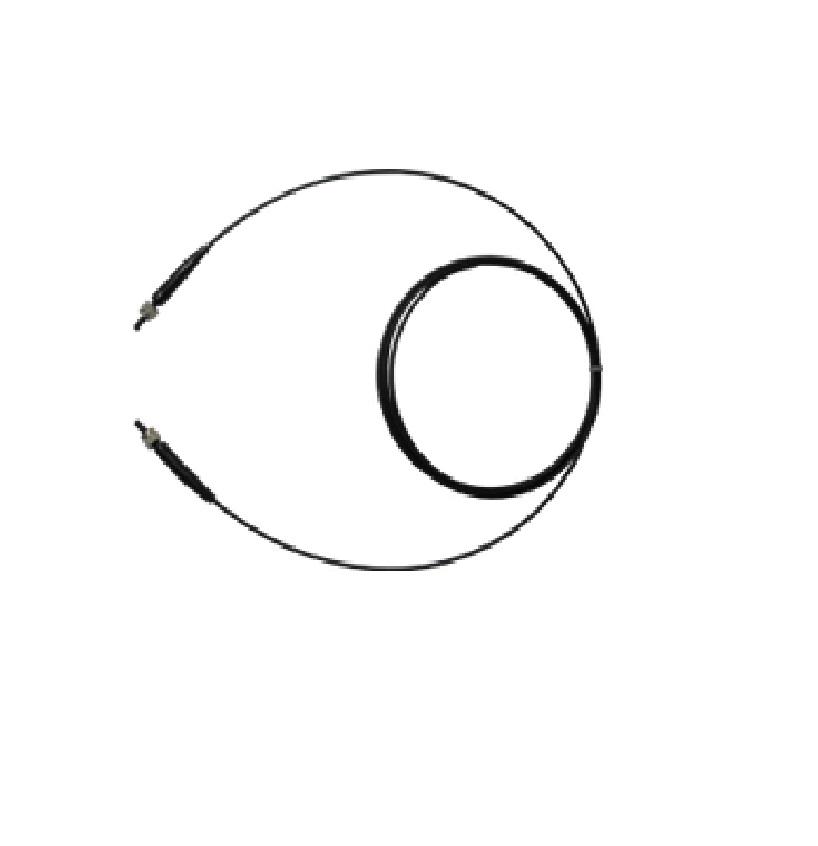

• Fiber optic cable, terminated with SMA connectors – 5meter.
