Features of the Trainer
Built in Regulated power supply
DC 15V/300mA(Variable) ,DC + 5V/300mA(fixed)
Power Supply
Voltage range : AC 100V – 230 VFrequency Range : 50 – 60Hz
Housing
It is mounted in an elegant cabinet (CNC Machine finish) for better viewing and portability
Dimension
45cm x 45cm x18cm
Weight
6 Kgs (Approx.)
Instruction Manual
Step-By-Step detailed instruction manual.

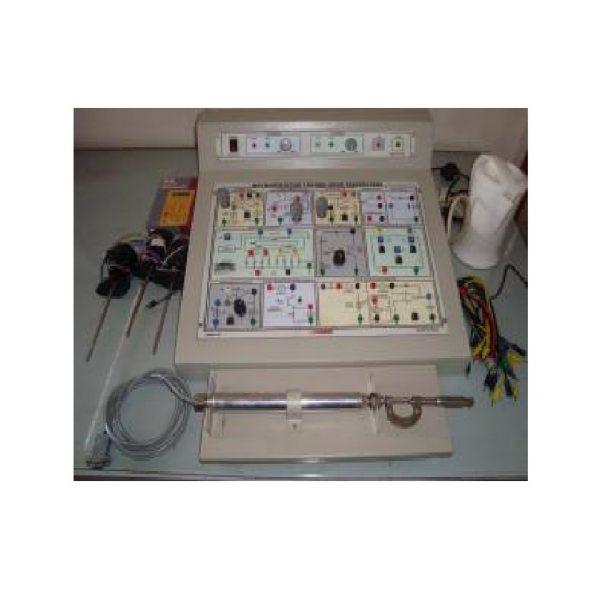

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
List Of Experiments:
• RTD CHARACTERISTICS
• 2-WIRE RTD IN A POTENTIOMETER CIRCUIT
• 3-WIRE RTD USING DC WHEATSTONE BRIDGE CIRCUIT
• THERMISTOR CHARACTERISTICS
• THERMISTOR IN A NON INVERTING OP-AMP CIRCUIT
• THERMOCOUPLE CHARACTERISTICS
• SEMICONDUCTOR DIODE AS A TEMPERATURE SENSOR
• TRANSISTOR AS A TEMPERATURE SENSOR
• LVDT CHARACTERISTICS
• LDR AS OPTICAL SENSOR
• PHOTODIODE AS OPTICAL SENSOR
• PHOTOTRANSISTOR CHARACTERISTICS
• INSTRUMENTATION AMPLIFIER
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
• LVDT

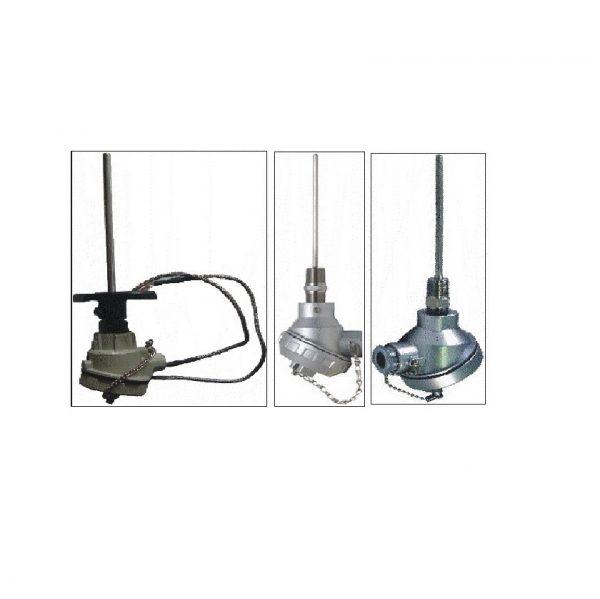

• RTD
• Thermister
• Thermocouple

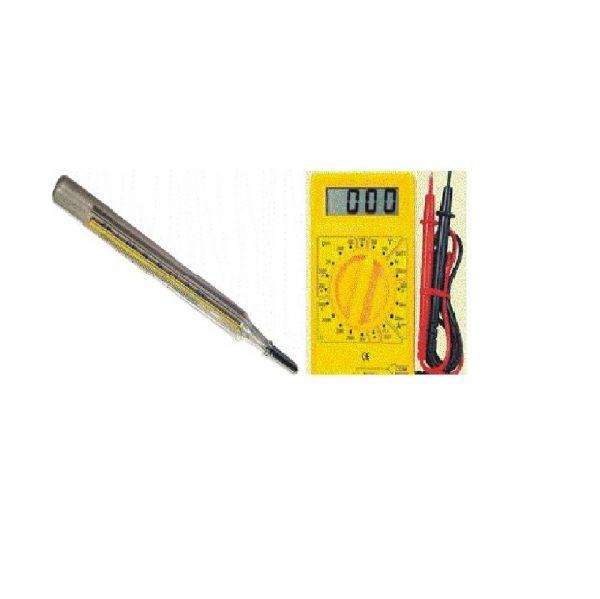

• Thermometer
• Multimeter
• DC 6V lamp

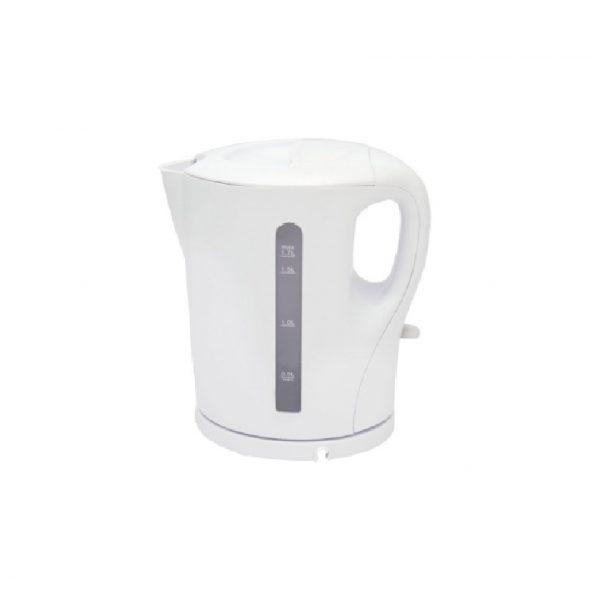

• Kettle
• Aliner
