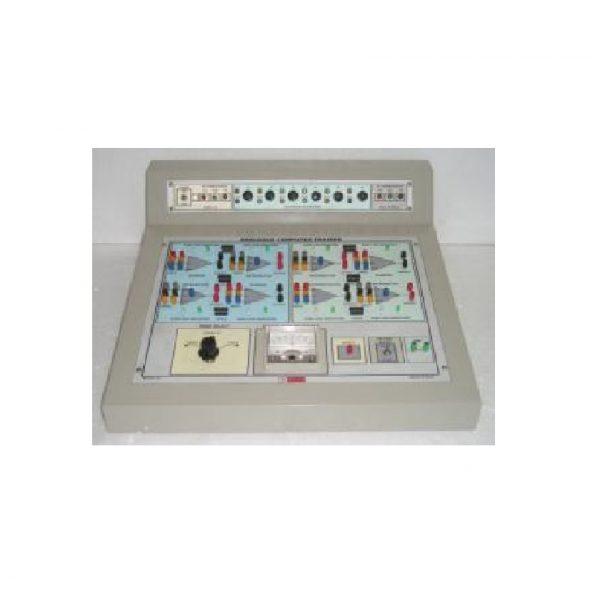

Features of the Trainer
Built in Regulate power supply DC +15V / 1 AMP;DC -15V / 1 AMP.
Power Supply Voltage range : AC 100V – 230 VFrequency Range : 50 – 60Hz
Overload Warning Indicators Overload indicators are provided for each op-amp for both positive and negative voltages
Inputs Input can be given from the built-in power supply which is available on the computer
Outputs Center zero meter is provided for measuring both positive and negative voltages
Modes of Operation Reset-Compute-Hold facility is provided by means of rotary switch
Patch Panel It is provided for interconnection. Patching wires will be provided along with the computer.
Coefficient Multipliers LAB ANALOG COMPUTER has got six-coefficient multipliers to set the fractional voltages
Housing It is housed in an elegant metal cabinet(CNC Machine finish) for better viewing and portability
Dimension 45cm x 45cm x 18cm
Weight 6 Kgs
Instruction Manual Step-By-Step detailed instruction manual.
OP-AMPS 8 FET input op-amps, summers, integrators, differentiators are available
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
