Features of the Trainer:
• Compatible with MCS-51™ Products
• 4K Bytes of In-System Reprogrammable Flash Memory
• Endurance: 1,000 Write/Erase Cycles
• Fully Static Operation: 0 Hz to 24 MHz
• Three-Level Program Memory Lock
• 128 x 8-Bit Internal RAM
• 32 Programmable I/O Lines
• Two 16-Bit Timer/Counters
• Six Interrupt Sources
• Programmable Serial Channel
• Low Power Idle and Power Down Modes
• Reset Switch To Reset Both Controllers.

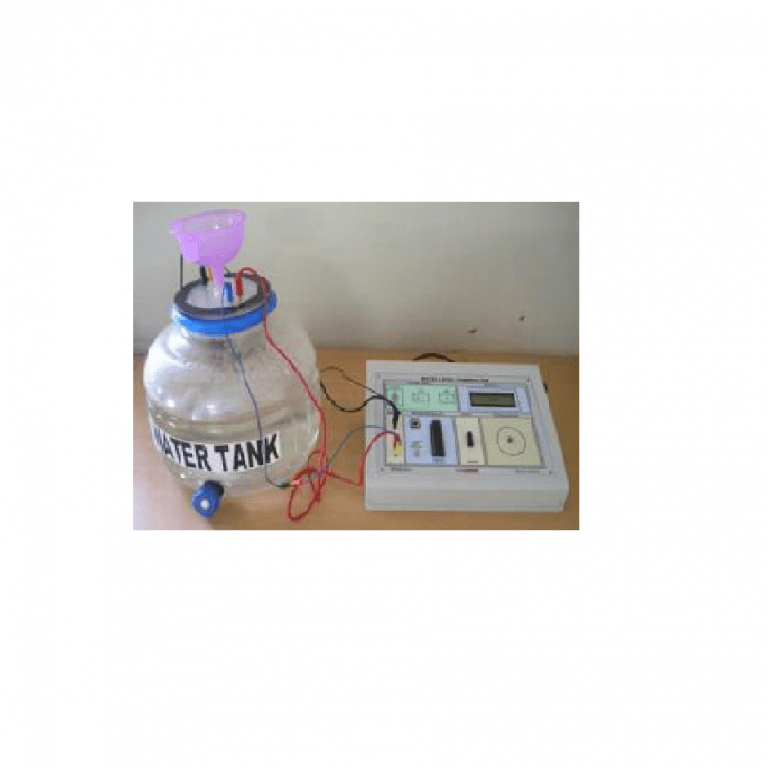

• Control The Level Of Water In A Tank System
• Two Float Sensor Are Provided For Measuring The Level
Built in Regulated Power Supply : DC +5V/300 mA.
Power Supply : Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
Housing : It is mounted in an elegant ABS Plastic cabinet for better viewing and portability.
Dimension : 29cm x 20cm x 11cm
Weight : 1.5kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.

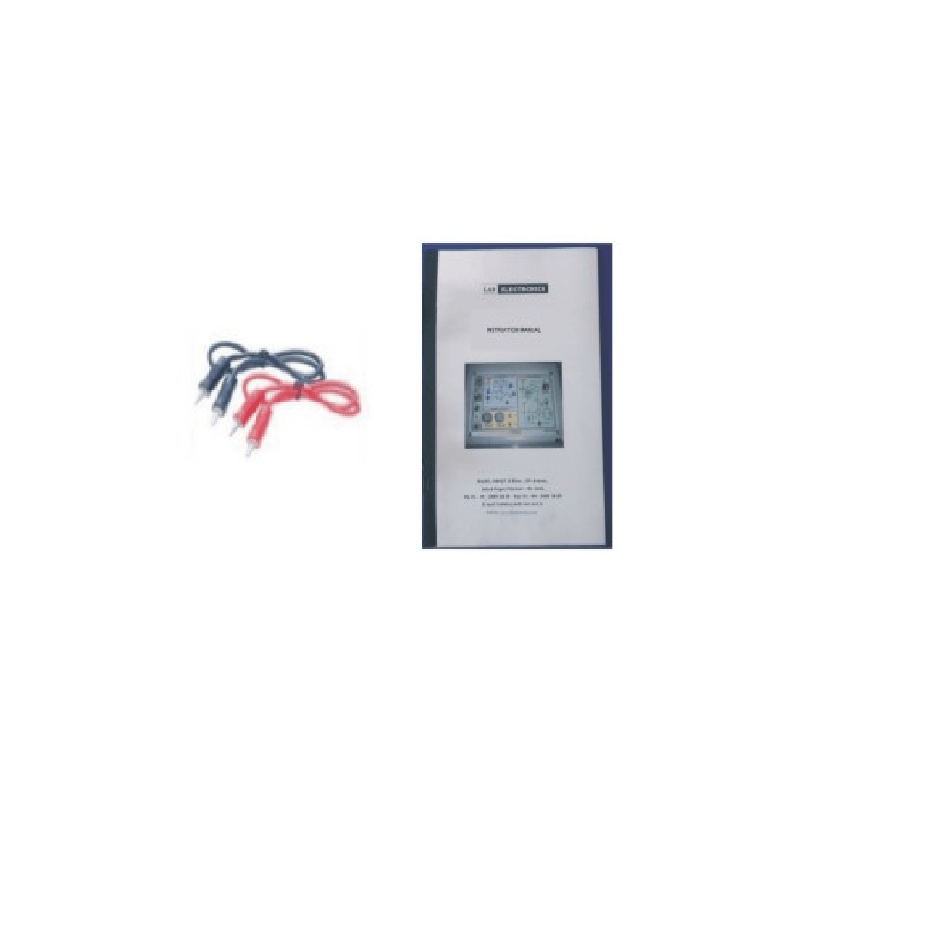

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.

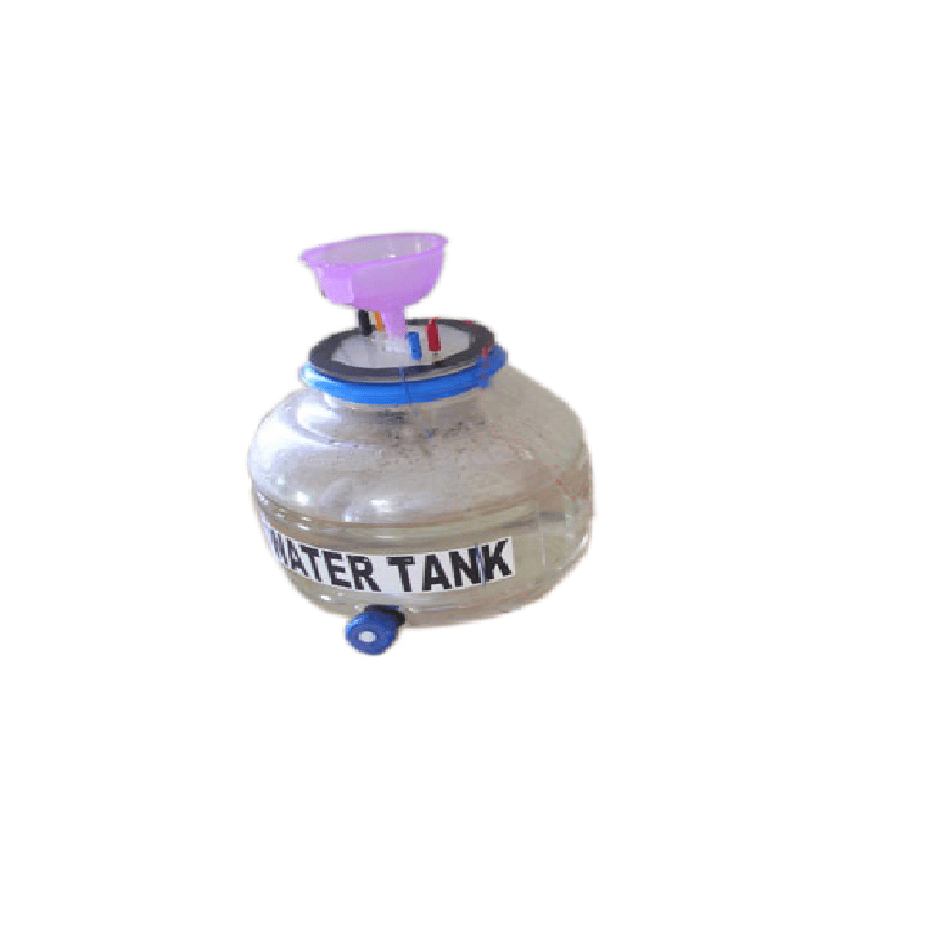

Water tank.
