Features of the Trainer:
4 Sequence switch/ 4delay switch
Sequence 1: LED Testing
Sequence 2: One way traffic
Sequence 3 & 4: Two way traffic
Function of LEDs in the trainer.
• Green – Start,
• Red – Stop
• Yellow – Warning To Stop
• Blue – Pedestrian
• Multi Colour– Free Left
Built in Regulated Power Supply : DC +5V/300 mA.
Power Supply : Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
Housing : It is mounted in an elegant ABS Plastic cabinet for better viewing and portability.
Dimension : 29cm x 20cm x 11cm
Weight : 1.5kgs

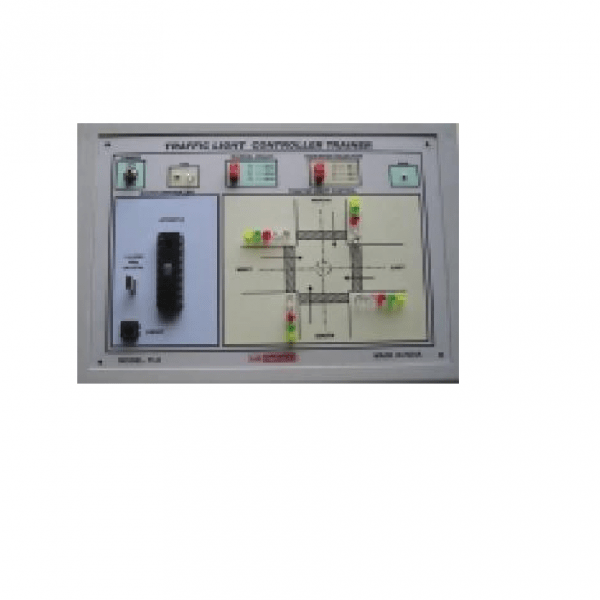

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
Accessories:
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
