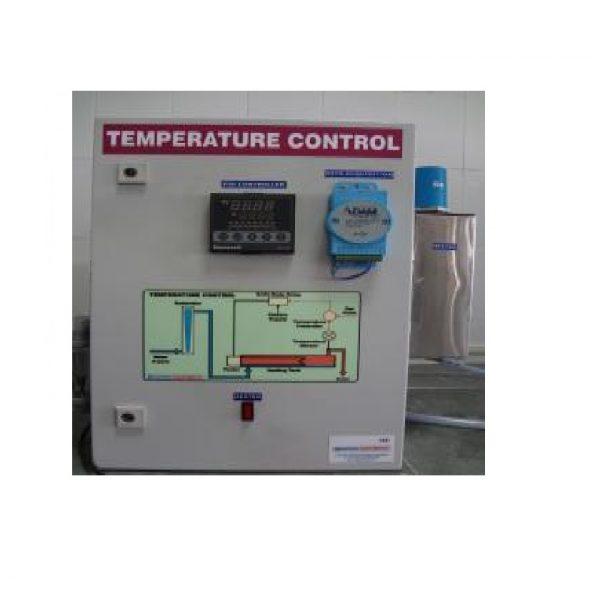

FEATURES:
• System works on 230V AC
• ‘Honeywell’ make PID is used.
• System controls ON-OFF through PID.
• Pre set levels can be Auto tuned.
• Interfacing Hardware and Software with USB to study SCADA operations
• MODBUS communication
• Multi drop and point to point Communication
• Server-Client communication
• System configured using ‘RITTAL’ cabinet
• System is Table mounted
• Dimensions: W:530 mm, Ht:600 mm, D: 300 mm.
RANGE OF EXPERIMENTS:-
• Study of proportional controller
• Study of proportional integral controller
• Study of proportional derivative controller
• Study of proportional integral derivative controller
• Tuning of controller (Closed loop method)
• Tuning of controller (Using Auto Tuning method)
