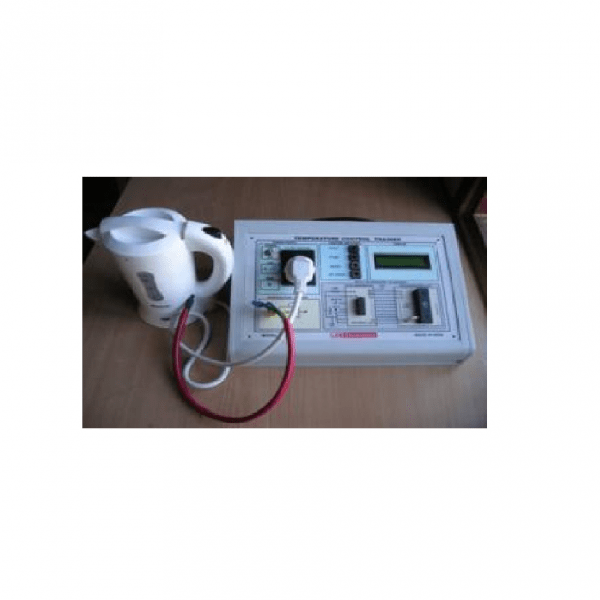

Features of the Trainer:
Built in Regulated Power Supply : DC +5V/1A.
Power suppl: Voltage range : AC 100V – 230 V
Frequency range :Â 50 – 60Hz
Output Indicators : LCD display
Control switches : Push buttons 4 Nos.
Housing : It is mounted in an elegant ABS Plastic cabinet for better viewing and portability
Dimension : 29cm x 20cm x 11cm
Weight : 1.5Kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.

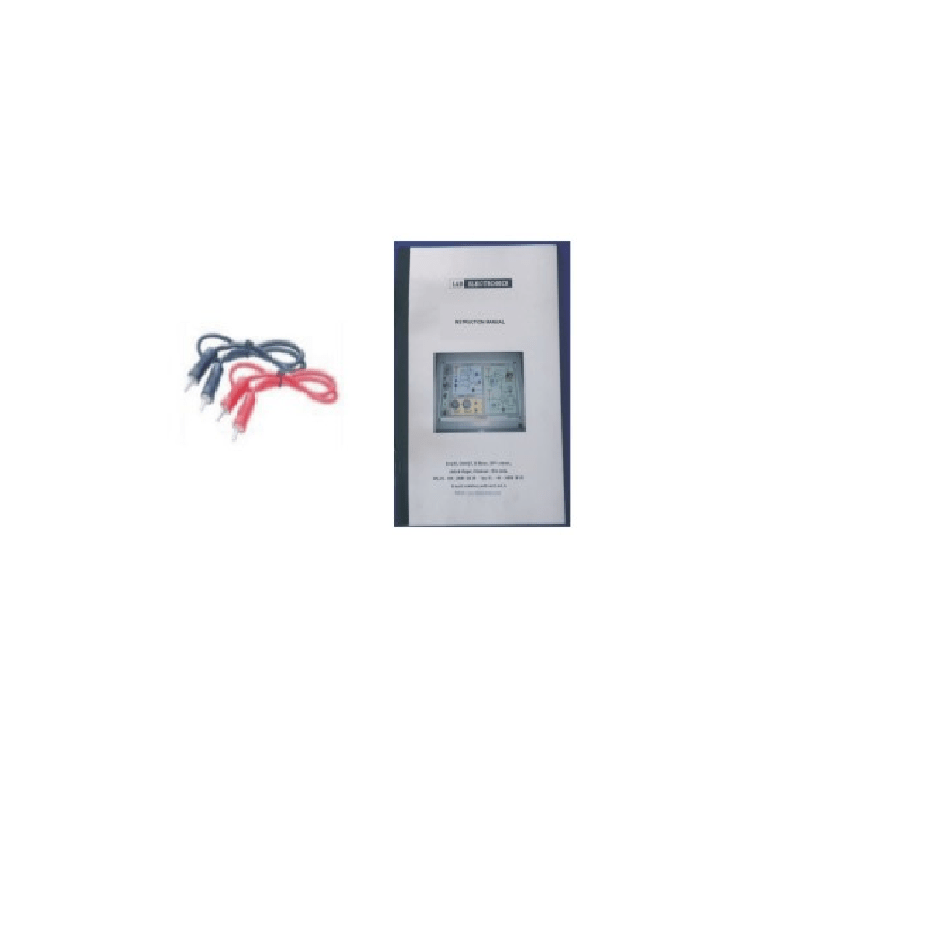

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.

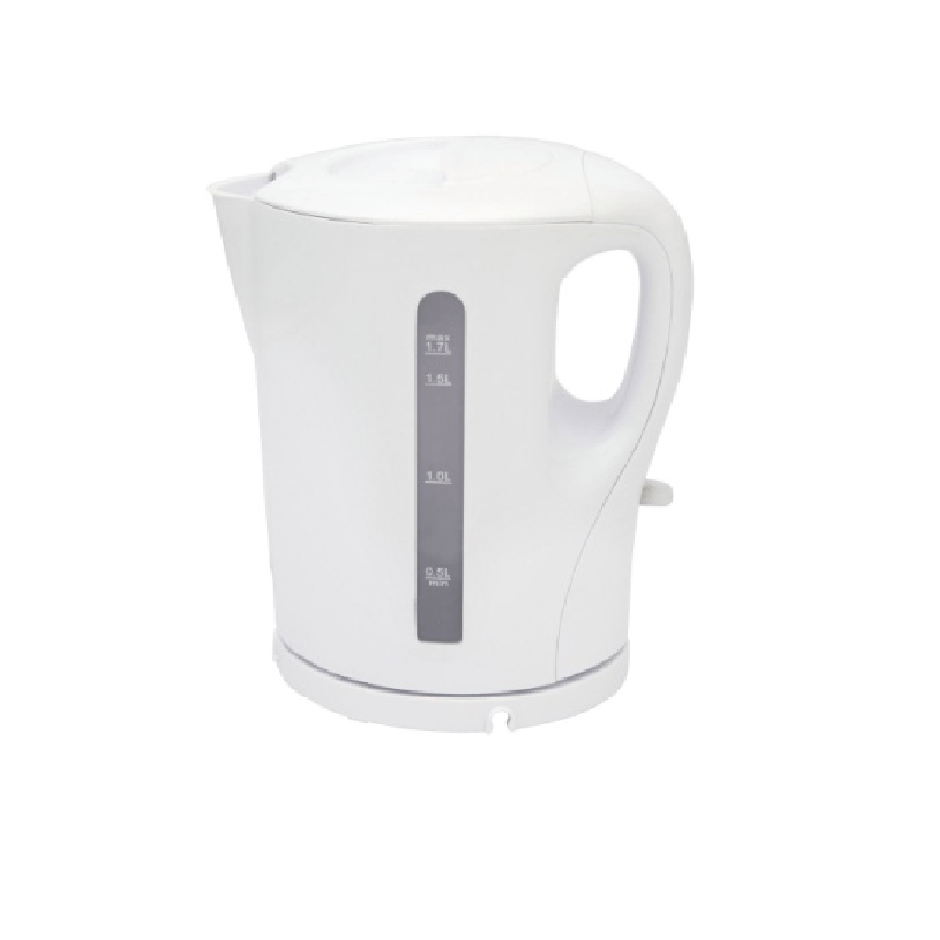

• Kettle

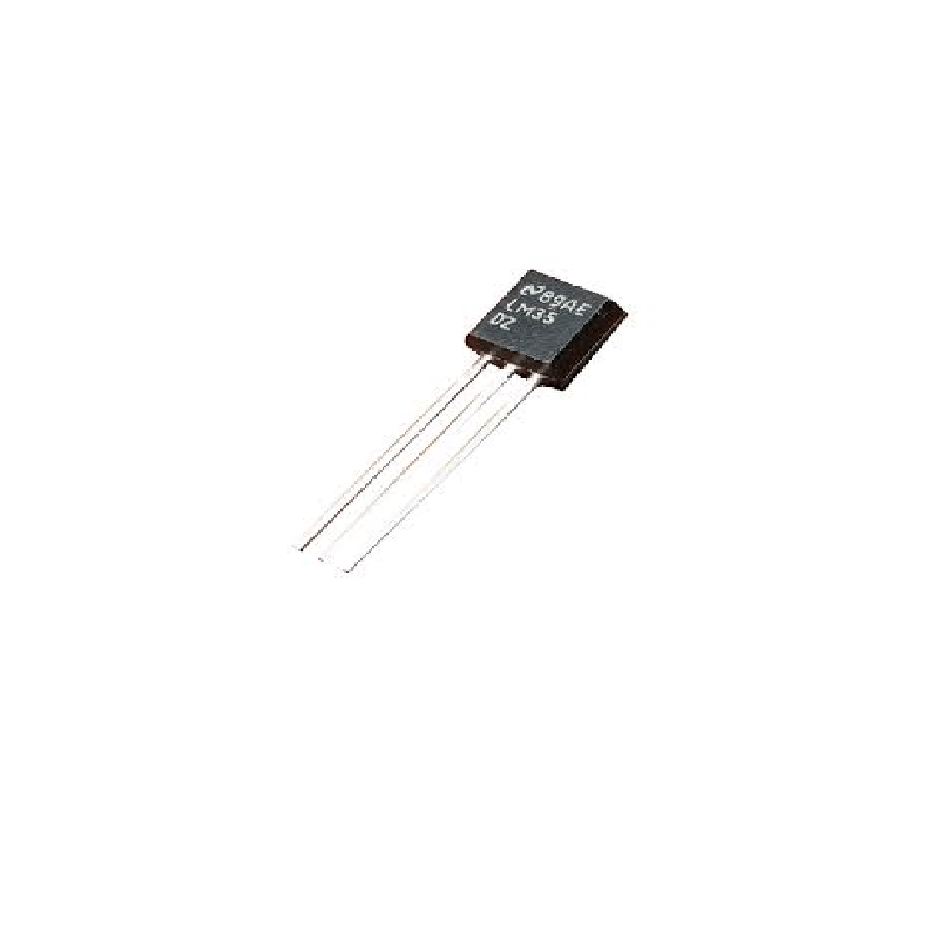

LM35
