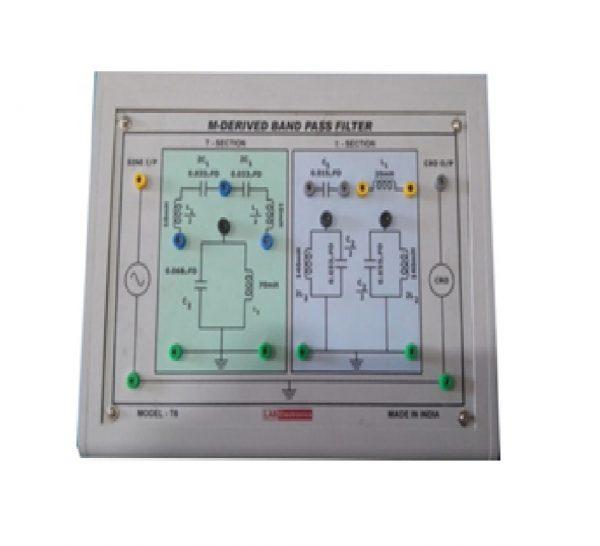

T-06 M-DERIVED BAND PASS FILTER
T-06 M-DERIVED BAND PASS FILTER - Image 2

T-06 M-DERIVED BAND PASS FILTER

Category Special!

🚚 Delivery within 10 days

To construct an M-derived band pass filter by cascading an LPF and HPF so that the cut off frequency of LPF is greater than that of HPF and to plot the graph between gain and frequency characteristics of the filter.

Add to Quote
Category:

Description

FEATURES OF THE TRAINER:

Instruction Manual : Step-By-Step detailed instruction manual.

Dimension : 27cmX 17cm X 10cm

Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.

Weight : 500 Gm.

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
