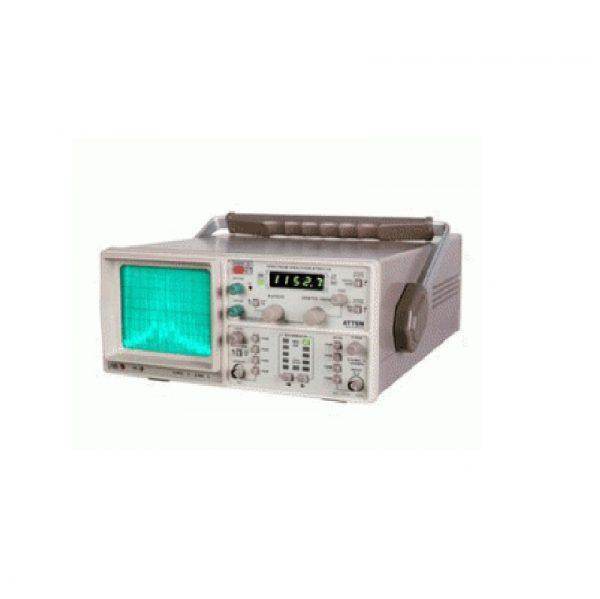

SPECTRUM ANALYSER 1GHZ(WITH TRACKING)

Frequency:
• Range: 0.15 ~ 1050MHz
• Center frequency display accuracy: plus or minus 2% × spectral width of +5 × 10^-3 × center frequency +100 KHz
• Tag accuracy: plus or minus 0.1% bandwidth +100 HKz
• Frequency Display Resolution: 100KHz (4 ½-digit LED)
• Sweep width: 100KHz / cell ~ 100MHz / 125 block grid and 0Hz / cell (0 scan)
• Frequency stability: better than 150KHz / hour
• IF Bandwidth (-3dB): 20KHz (plus or minus 50%); 400KHz + (0, -40%), video filter (pass); 4KHz
• Scan Rate: 43Hz
• accuracy: plus or minus 10%
Margin
• Range: -100 ~ +13 dBm
• Screen display range: 80dB (10dB / cell)
• Log scale fidelity: plus or minus 2dB (without attenuator), 500MHz
Input / Output :
• Impedance: 50Ohm and Socket: N (F) connector
• Attenuator: 0 ~ 40dB (4 × 10dB step)
• Input attenuator accuracy: plus or minus 1dB/10dB
• Maximum input level: +10 dBm, plus or minus 25VDC (Attenuator 0dB), +20 dBm (40dB attenuator)
Tracking generator:
• Output Frequency Range: 0.15MHz ~ 1050MHz
• Output Level Range: -50 ~ +1 dBm (10dB variable step adjustment)
• Output attenuator: 0 ~ 40dB (4 × 10dB)
• Accuracy (attenuator): plus or minus 1dB
• Output impedance: 50Ohm (BNC)
• Frequency range: 0.15 ~ 1050MHz
• Radio frequency interference (RFI): <20dB
Others
• Power: 200VAC/110 VAC plus or minus 10%, 50Hz ~ 60Hz
• Track calibration: adjustment in the panel (TR)
• Power: 20W plus or minus 20%
• Size: 285 (W) × 125 (H) × 380 (D) mm
• Net Weight: 9.5 kg,the packaged weight can be up to 11Kg.

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

FEATURES:
• Frequency range: 0.15 ~ 1050MHz
• 4 half figures (center frequency, 0.1MHz Resolution)
• 100 ~ +13 dbm amplitude range, 20KHz, 400KHz IF filter bandwidth and 4KHz video
• Output range: +0 ~-50dBm (50Ohm)
• Tracking generator
• Point frequency mode and Sweep mode
• GSM, CDMA mobile phone repair
• Frequency Measurement Extension
• Radiated interference test: With the AZ-530-E electric field monopole probe
• Internal Circuit Interference test: With the AZ-530-M magnetic field probe
• Internal circuit Checking and repairing Test: With the AZ-530-H high-impedance probe
• CATV and communications machine inspection: with the impedance converter
