S-08 RATIO DETECTOR
Category Special!
🚚 Delivery within 10 days

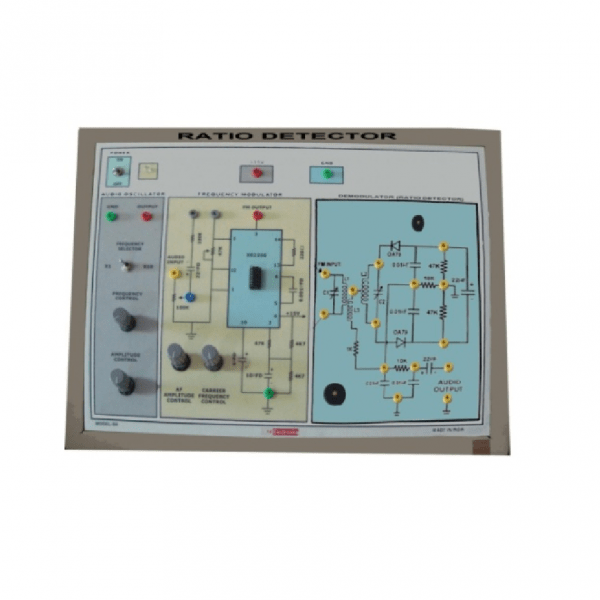

To study the frequency demodulation using Ratio detector circuit. The RATIO DETECTOR uses a double-tuned transformer to convert the instantaneous frequency variations of the FM input signal to instantaneous amplitude variations. These amplitude variations are then rectified to provide a dc output voltage, which varies in amplitude and polarity with the input signal frequency. This detector demodulates FM signals and suppresses amplitude noise without the need of limiter stages. Audio oscillator section internally provided.
Description
FEATURES OF THE TRAINER:
Built in regulated power supply : +15V/300 mA.
Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Weight : 500 Gm.
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
