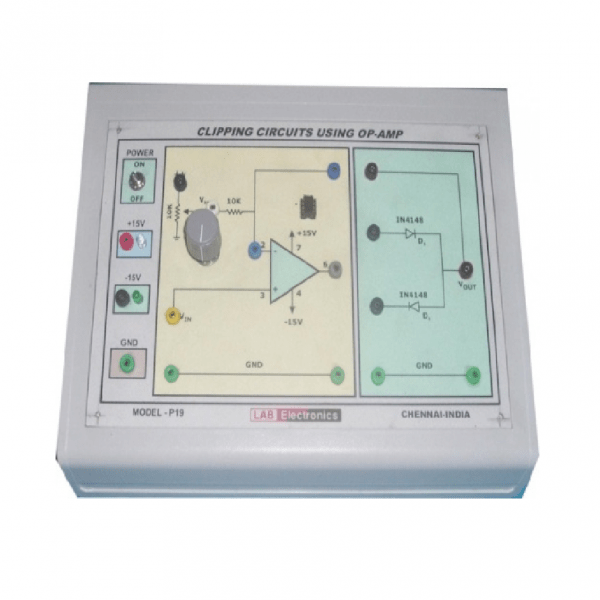

P-19 CLIPPING CIRCUITS USING OP AMP
P-19 CLIPPING CIRCUITS USING OP AMP - Image 2

P-19 CLIPPING CIRCUITS USING OP AMP

Category Special!

🚚 Delivery within 10 days

To show that the positive clipper circuits clips or removes the positive part of the input signal and the negative clipper circuits removes the negative part of the input signal. To observe that the reference voltage is used to control the clipping level of output of the given input wave.

Add to Quote
Category:

Description

FEATURES OF THE TRAINER:

Built in regulated power supply : +15V ,-15V/300 mA.

Instruction Manual : Step-By-Step detailed instruction manual.

Dimension : 27cmX 17cm X 10cm

Input Supply : 230V AC/50 Hz mains operated

Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.

Weight : 500 Gm.

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
