N-34 555 TIMER CIRCUITS AND APPLICATIONS
N-34 555 TIMER CIRCUITS AND APPLICATIONS - Image 2

N-34 555 TIMER CIRCUITS AND APPLICATIONS

Category Special!

🚚 Delivery within 10 days

• To construct and study the operation of a 555 timer as an astable multivibrator.
• To measure the frequency and duty cycle of a 555 astable multivibrator circuit.
• To construct and study the operation of the 555 timer as a monostable multivibrator.
• To construct and study the operation of the 555 timer as a bistable multivibrator.

Add to Quote
Category:

Description

Features of the Trainer

Built it regulated power supply  DC +5V/300 mA.
Power Supply Voltage range : AC 100V – 230V Frequency Range : 50 – 60Hz
Housing It is mounted in an elegant ABS Plastic cabinet for better viewing and portability
Dimension 29cm x 20cm x 11cm
Weight 1.5kgs

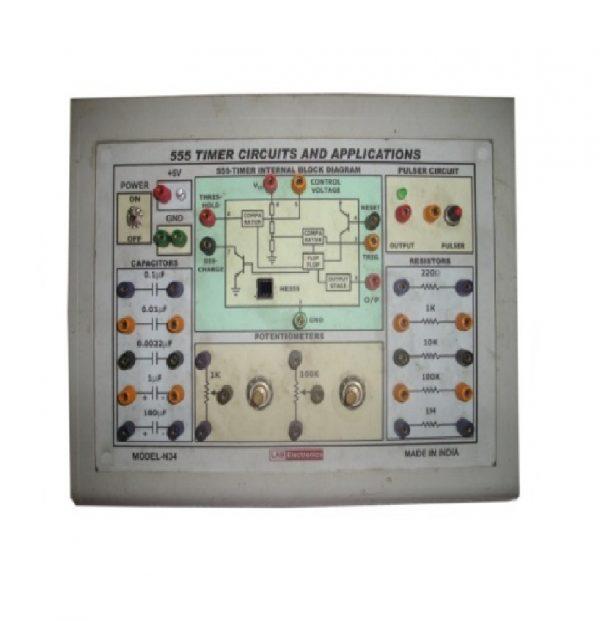

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.

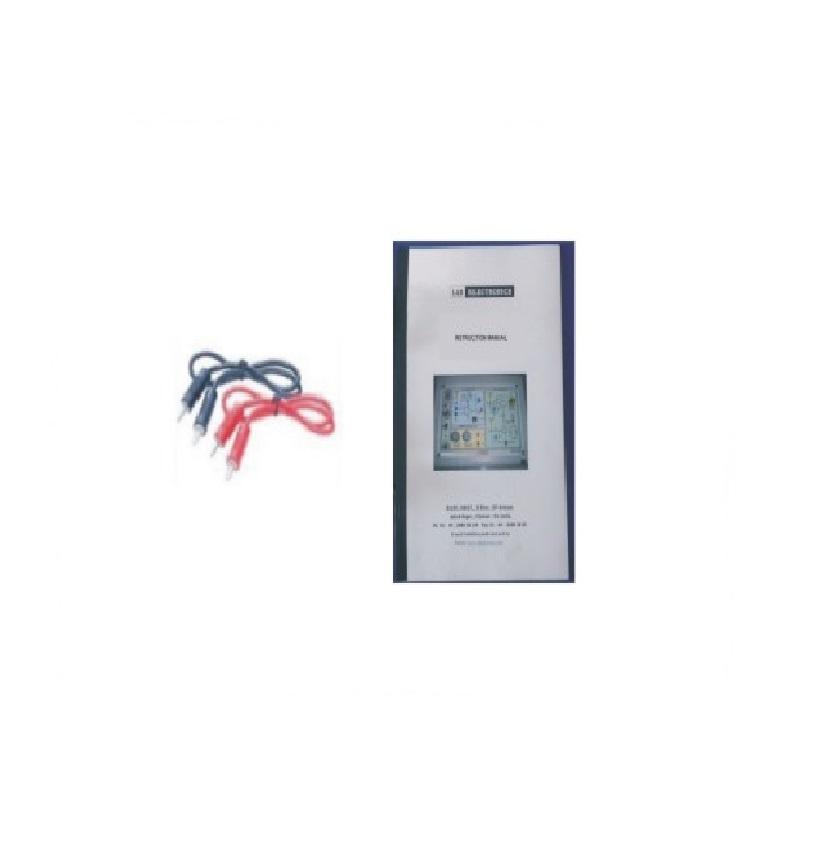

 Accessories:

2mm multi coloured moulded patch cords with daisying facility.

Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
