₹ 3,950.00

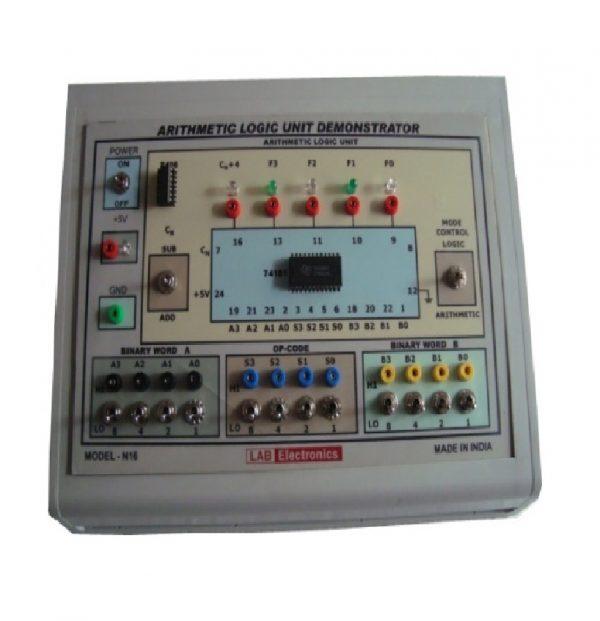

Arithmetic operations (addition and subtraction of 4-bit binary words). 5 logic functions (AND, OR, NAND, NOR, EXCLUSIVE OR & NOR). 4 combined arithmetic logic operations (4-bit magnitude comparator, etc). This is a very important experiment to understand some of the basics of Arithmetic functions and Logic functions of microprocessors. Switches are provided as inputs, LEDs are provided as outputs to monitor the binary outputs.
FEATURES OF THE TRAINER:
Built in regulated power supply : +5V/300 mA.
Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection moulded cabinet for better viewing & portability.
Weight : 500 Gm.
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
