DESCRIPTION:

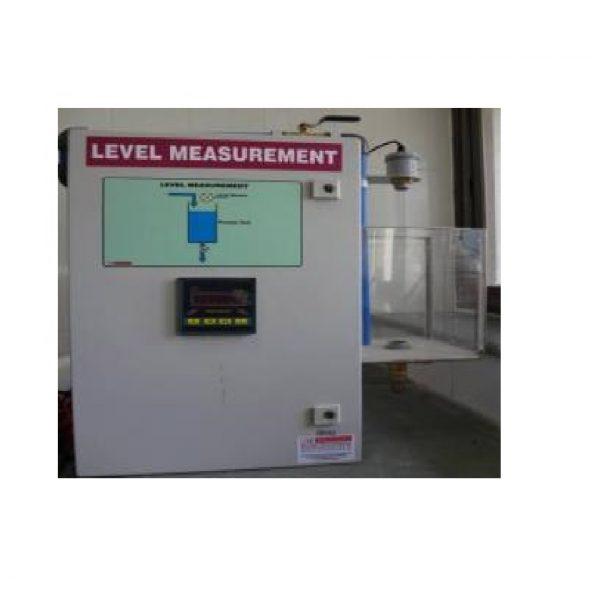

Level measurement Trainer is designed to demonstrate principles of liquid level measurement by using Ultrasonic Sensor. The set up consists of Ultrasonic Sensor,transparent process tank marked with graduated scale, supply tank, pump for water circulation,level indicator.
The process tank is and provided with drain valve. The level in the tank is displayed on digital indicator.The units are fitted on support housing designed for tabletop mounting.
EXPERIMENTS:
• Study of Level measurement by Ultrasonic Sensor
• Study of Ultrasonic Sensor calibration.
FEATURES:
• System works on 230V AC
• Compact and simple to operate
• Ultrasonic transmitter senses the level of the fluid for displaying in the Process indicator
• System is Table mounted
• System configured using RITTAL cabinet
• Dimensions: W:600 mm, Ht:700 mm, D: 250 mm
