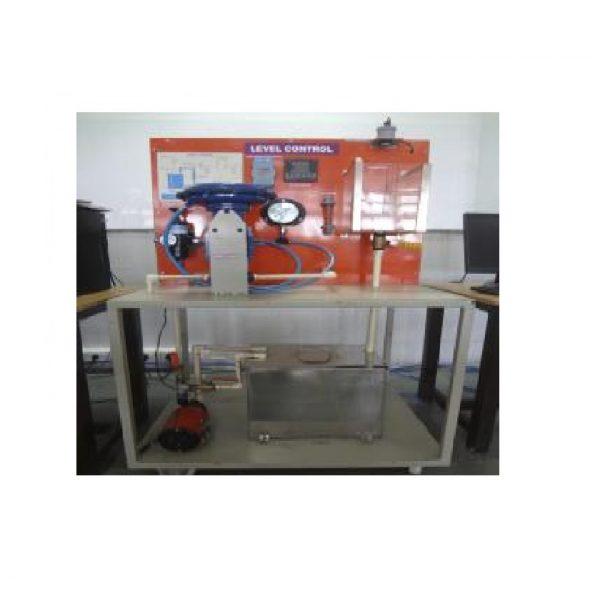

LEVEL CONTROL TRAINER

To control and maintain the level of water using PID controller and study the characteristics of PID in various modes.

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

FEATURES:
• System works on 230V AC
• ‘Honeywell’ make PID is used
• System controls ON-OFF through PID.
• Pre set levels can be Auto tuned.
• Interfacing Hardware and Software with USB to study SCADA operations
• MODBUS communication
• Multi drop and point to point Communication
• Server-Client communication
• Mono block pump of 0.5 HP is used
• System is Floor mounted, on wheels
• Dimensions: W: 800 mm, Ht: 1400 mm, D: 650 / 250 mm.
Range of experiments:-
• Study of proportional controller
• Study of proportional integral controller
• Study of proportional derivative controller
• Study of proportional integral derivative controller
• Tuning of controller (Closed loop method)
• Tuning of controller (Using Auto Tuning method)
