FEATURES :
• Crystal Controlled Pulse Generator.
• Demonstrates sampling and reconstructed as per Nyquist criterion.
• On-board Analog Generator Synchronized.
• 5 Selectable sampling Frequencies.
• Sampling Pulse Duty-Cycle selectable.
• Internal/External sampling selectable.
• Separate sample and sample/Hold outputs available.
• On-board second order and Forth order Low-pass Filters.
SPECIFICATION :
Crystal Frequency
6.4MHz
Sampling Frequency
2,4,8,16&32KHz(Switch selectable)
On Board Generator
Synchronized 1KHz sine wave(5Vpp)
Duty cycle
0-90% in Decade steps (switch selectable)
Low Pass Filter
Butter worth 2nd&4th order. Cut-off Frequency- 3.4KHz each
Power Supply
Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
HOUSING
Housed in a sloping cabinet

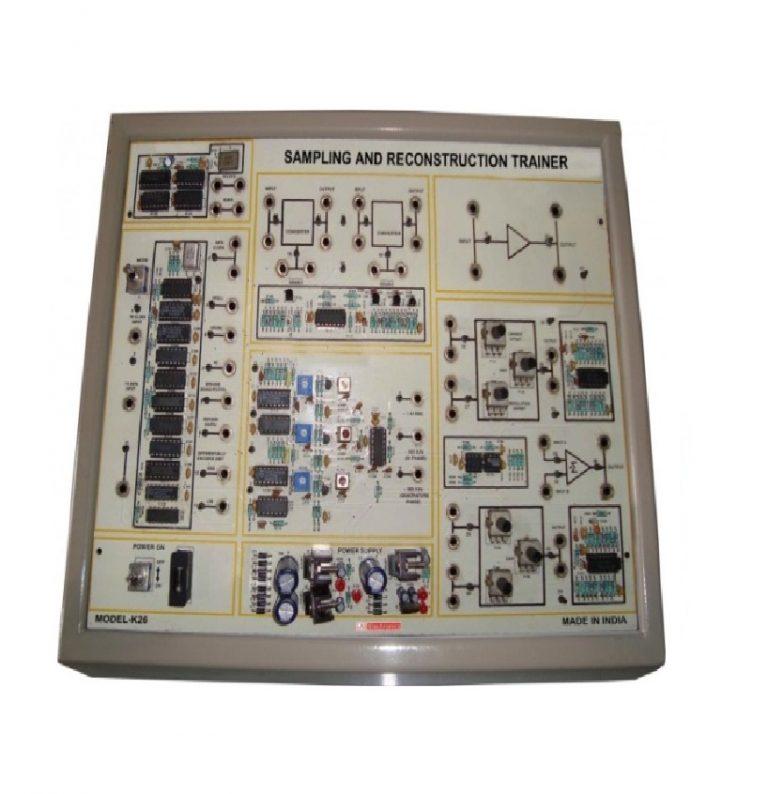

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.

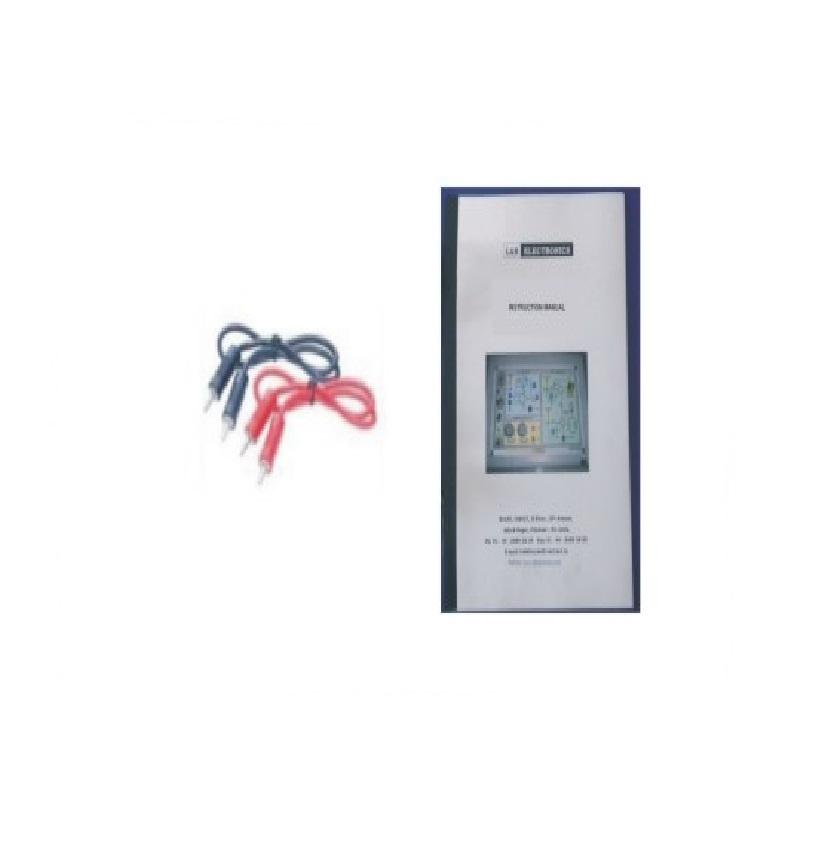

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
