Features of the Trainer :
AF Oscillator :
• Function : Sine.
• Frequency x1: 20Hz to 200Hz. x10: 200Hz to 2KHz.
• Amplitude : 0-10V (P-P).
RF Oscillator:
• Function : Sine/Square.
• Amplitude : 0-10V (P-P)
• Frequency x1: 2KHz to 20KHz. x10: 20KHz to 200KHz.
Specification:
Built it regulated power supply
DC +/-15V, +/-12V
Power Supply
Voltage range : AC 100V – 230V Frequency Range : 50 – 60Hz
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
38cm x 30cm x 12cm
Weight
3.5kgs

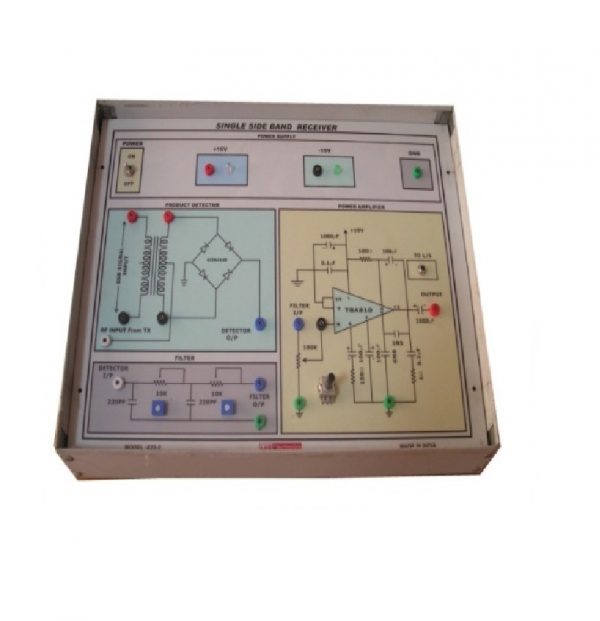

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
Accessories:

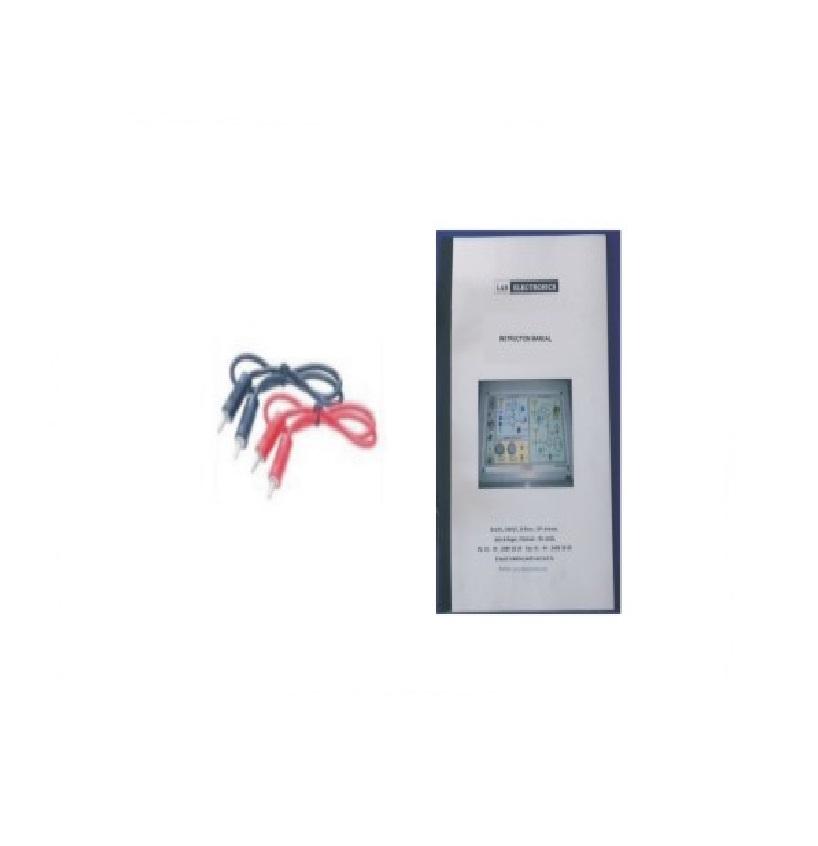

2mm multi coloured moulded patch cords with daisying facility.
Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
