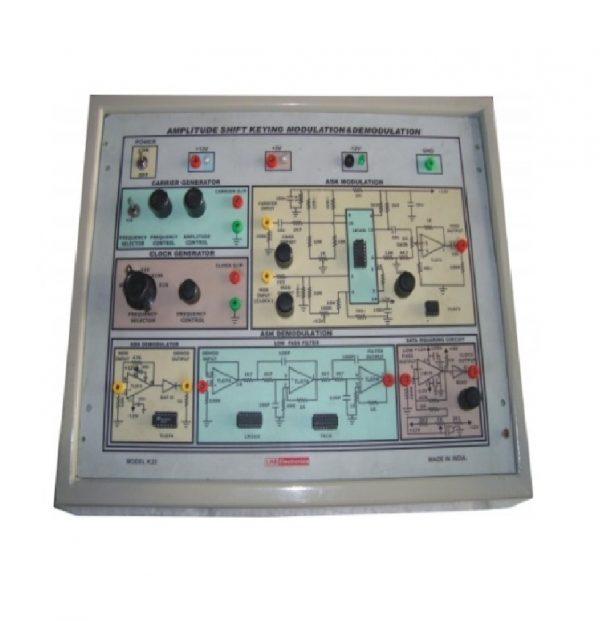

K-22 ASK MODULATION AND DEMODULATION

To study the Amplitude Shift Keying Modulation and Demodulation

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer:
Clock Generator:
• Output Wave form : Square
• Frequency : 100KHZ
• Amplitude : 10V (P-P)
Audio Oscillator:
• Output Wave form : Sine
• Amplitude :0-10V (P-P)
• Frequency :200Hz-2KHz
Gain Control:
• This pot adjusts the amplification of the modulator’s output.
Modulation Offset:
• This control is used to adjust the amplitude of the OFF signal. Adjust this control till the amplitude of the OFF signal is close to zero as possible. Carrier Offset:
• This control adjusts the off bias level of the ASK waveform. Adjust this control till the off level occurs midway between the ON signal peaks.)
Specification :
Built it regulated power supply
DC +5V, +/-12V
Power Supply
Voltage range : AC 100V – 230V Frequency Range : 50 – 60Hz
Housing
It is mounted in an elegant ABS Plastic cabinet for better viewing and portability
Dimension
29cm x 20cm x 11cm
Weight
1.5kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
