K-21 BINARY PHASE-SHIFT-KEYING (BPSK)

Objective:
• Binary phase- shift- keying (BPSK) has only two phases, 0 and π. It is therefore a type of ASK with f(t) taking the values – 1 or 1 and its bandwidth is the same as that of ASK. Phase-shift-keying offers a simple way of increasing the number of levels in the transmission without increasing the bandwidth by introducing smaller phase shifts.Objective:
• Binary phase- shift- keying (BPSK) has only two phases, 0 and π. It is therefore a type of ASK with f(t) taking the values – 1 or 1 and its bandwidth is the same as that of ASK. Phase-shift-keying offers a simple way of increasing the number of levels in the transmission without increasing the bandwidth by introducing smaller phase shifts.

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer:
• This trainer consists of the following features.
Clock Generator:
• Output Wave form – Square
• Frequency – 100KHZ
• Amplitude –10V(P-P) fixed
Audio Oscillator:
• Output Wave form – Sine
• Amplitude – 0-10V(P-P)
• Frequency – 200Hz-2KHz

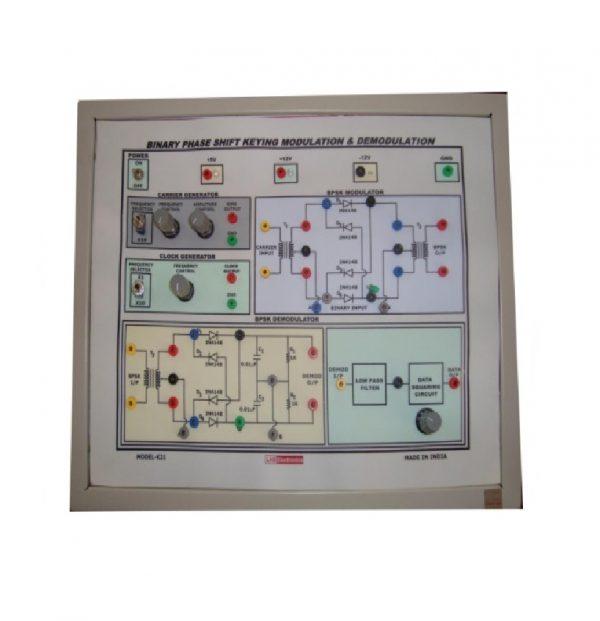

This trainer is a single PCB and all necessary components are mounted inside the PCB and circuit diagram is printed on the top panel with multi-colour using computer aided design.

Specification :
Built it regulated power supply
DC +/- 5V/300 mA.
Power Supply
Voltage range : AC 100V – 230V Frequency Range : 50 – 60Hz
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
38cm x 30cm x 12cm
Weight
3.5kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
Accessories:

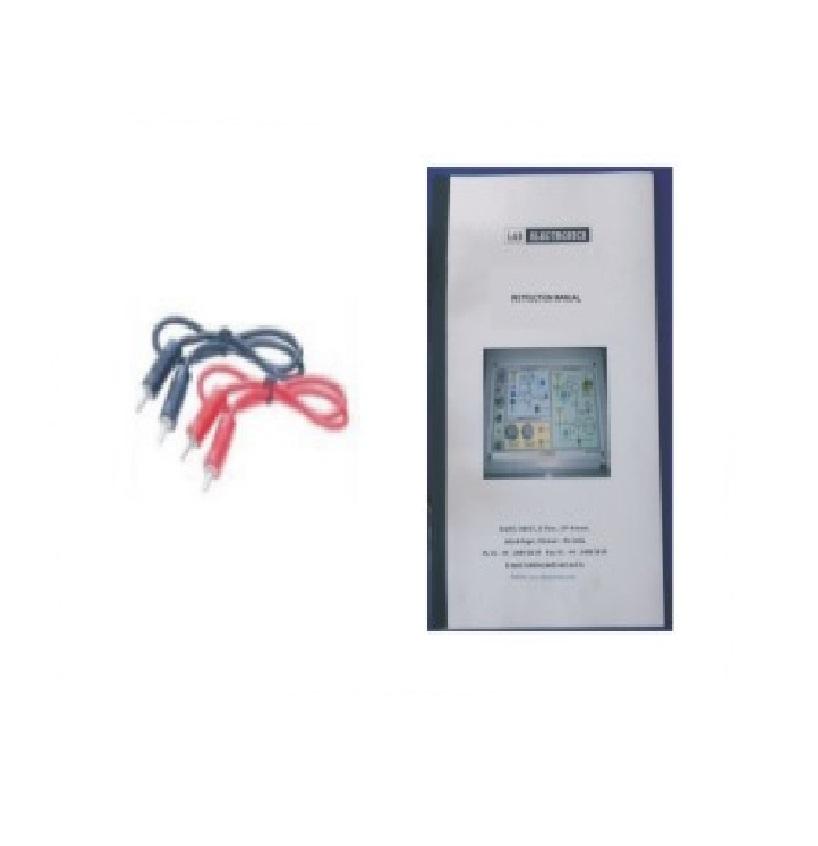

• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
