Description
Features:

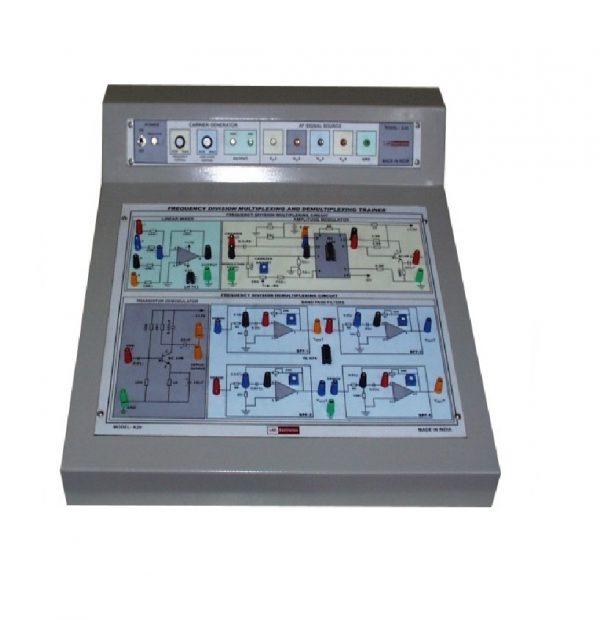

• This trainer consists of these following section;
• Linear mixer (Summing amplifier).
• Amplitude modulator.
• Transistor demodulator.
• Band pass filters.
• Carrier generator generates minimum 20KHz to maximum 200KHz frequency and the amplitude to be 12V(P-P).
• Signal source with four different frequency vin1 (500Hz), vin2 (2.5KHz), vin3 (5KHz), vin4 (10KHz) (approx.)
Specification :
Built it regulated power supply
DC +/- 12V/300 mA.
Power Supply
Voltage range : AC 100V – 230V Frequency Range : 50 – 60Hz
Housing
It is housed in an elegant metal cabinet(CNC Machine finish)
Dimension
45cm x 45cm x 18cm
Weight
6kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
