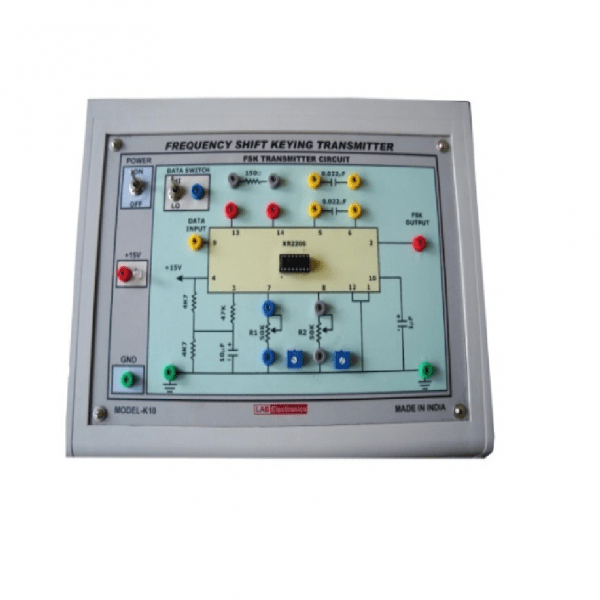

K-10 FSK TRANSMITTER
K-10 FSK TRANSMITTER - Image 2
K-10 FSK TRANSMITTER - Image 3

K-10 FSK TRANSMITTER

Category Special!

🚚 Delivery within 10 days

To construct an FSK transmitter, similar to those used in data communications systems using simplex mode of operation. To measure its “LOW” output frequency when its data input terminal is grounded and “HIGH ” output frequency when its data input terminal is connected to VCC. To connect the data input terminal to the square-wave signal that simulates a data pulse train that changes the output signal’s frequency shift in response to the square-wave input.

Add to Quote
Category:

Description

FEATURES OF THE TRAINER:

Built in regulated power supply : +15V/300 mA.

Instruction Manual : Step-By-Step detailed instruction manual.

Dimension : 27cmX 17cm X 10cm

Input Supply : 230V AC/50 Hz mains operated

Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.

Weight : 500 Gm.

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
