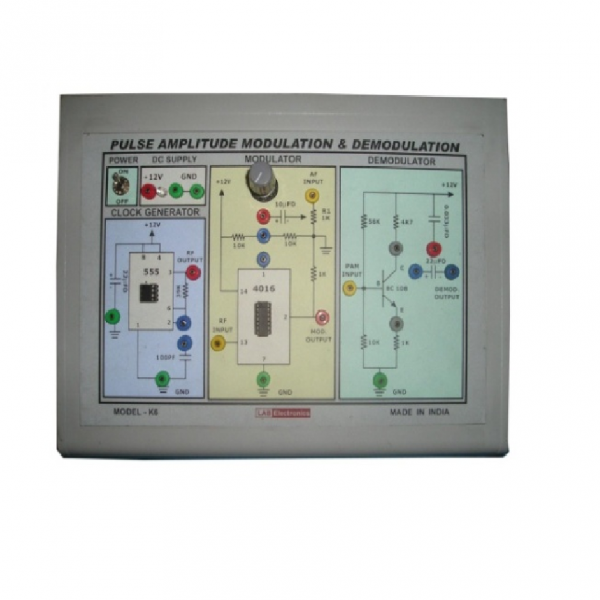

K-06 PULSE AMPLITUDE MODULATION & DEMODULATION
Category Special!
🚚 Delivery within 10 days
To construct a Pulse Amplitude Modulation generator and to observe the characteristics of both single and dual-polarity Pulse Amplitude Modulation. To construct a clock generator using an IC555 – timer as a sampling clock. To observe its output that controls a CMOS sampling switch. To identify the dual-polarity PAM output wave and to adjust the depth and frequency of modulation. To obtain a single-polarity PAM from this circuit by adding a DC reference level to the input sine wave. To observe the demodulated waveform using detector.
Description
FEATURES OF THE TRAINER:
Built in regulated power supply : +12V/300 mA.
Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Weight : 500 Gm.
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
