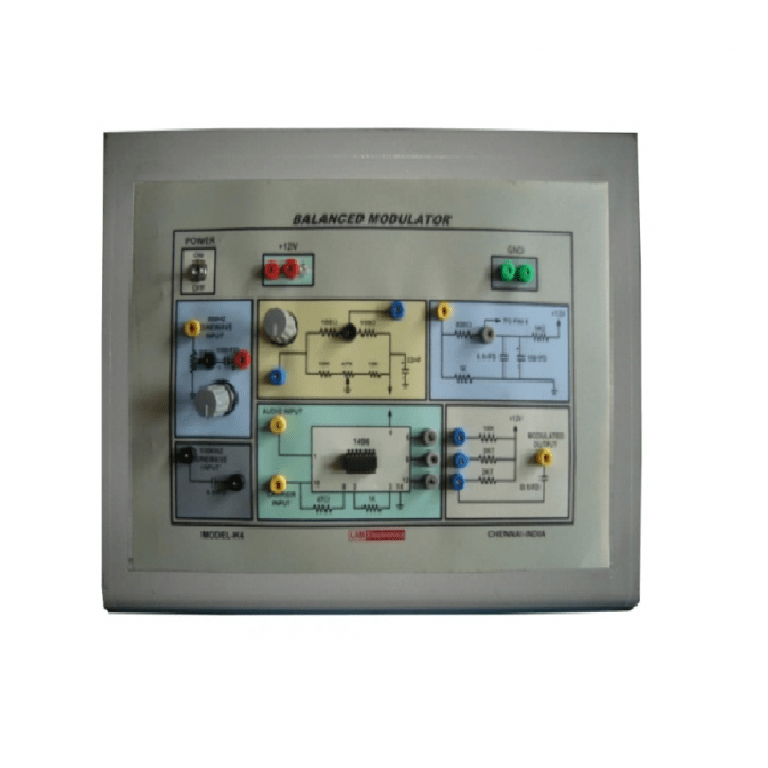

K-04 BALANCED MODULATOR

 3,950.00

To construct a balanced modulator and study its operation. To observe that the output is a double sideband with a suppressed-carrier signal. To adjust it for optimum carrier suppression. To verify that the input audio-level directly affects the double side-band output amplitude. To observe that the output is minimum with zero audio input. To measure the carrier output and the peak side-band output and to calculate the carrier suppression.

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

FEATURES OF THE TRAINER:

Built in regulated power supply : +12V/300 mA.

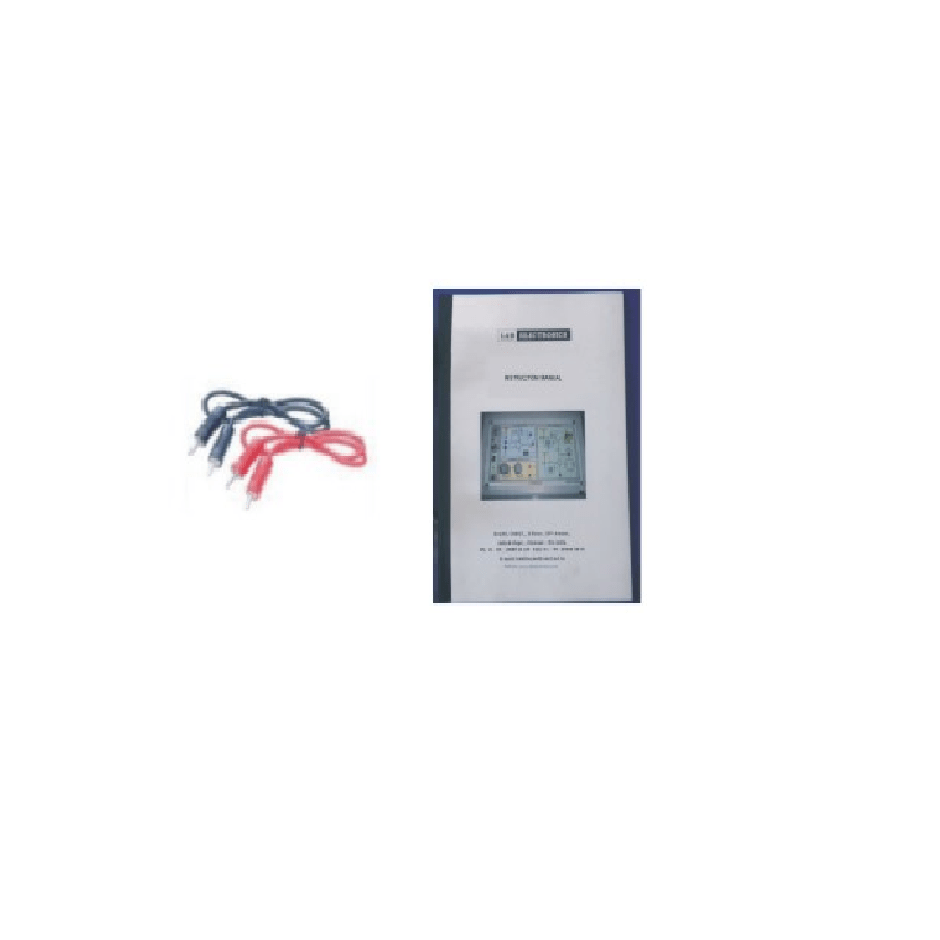

Instruction Manual : Step-By-Step detailed instruction manual.

Dimension : 27cmX 17cm X 10cm

Input Supply : 230V AC/50 Hz mains operated

Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.

Weight : 500 Gm.

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
