₹ 3,950.00
To demonstrate how a carrier’s instantaneous phase angle is made to vary in proportion to the modulating signal’s amplitude. To demonstrate the effect of frequency deviation. To demonstrate how a carrier’s instantaneous phase angle is made to vary when the signal crosses zero axis. To demonstrate how phase change occurs when the modulating wave changes polarity from + to – and from – to +. To demonstrate why phase modulation is some times called as indirect FM.
FEATURES OF THE TRAINER:
Built in regulated power supply : +15V/300 mA.

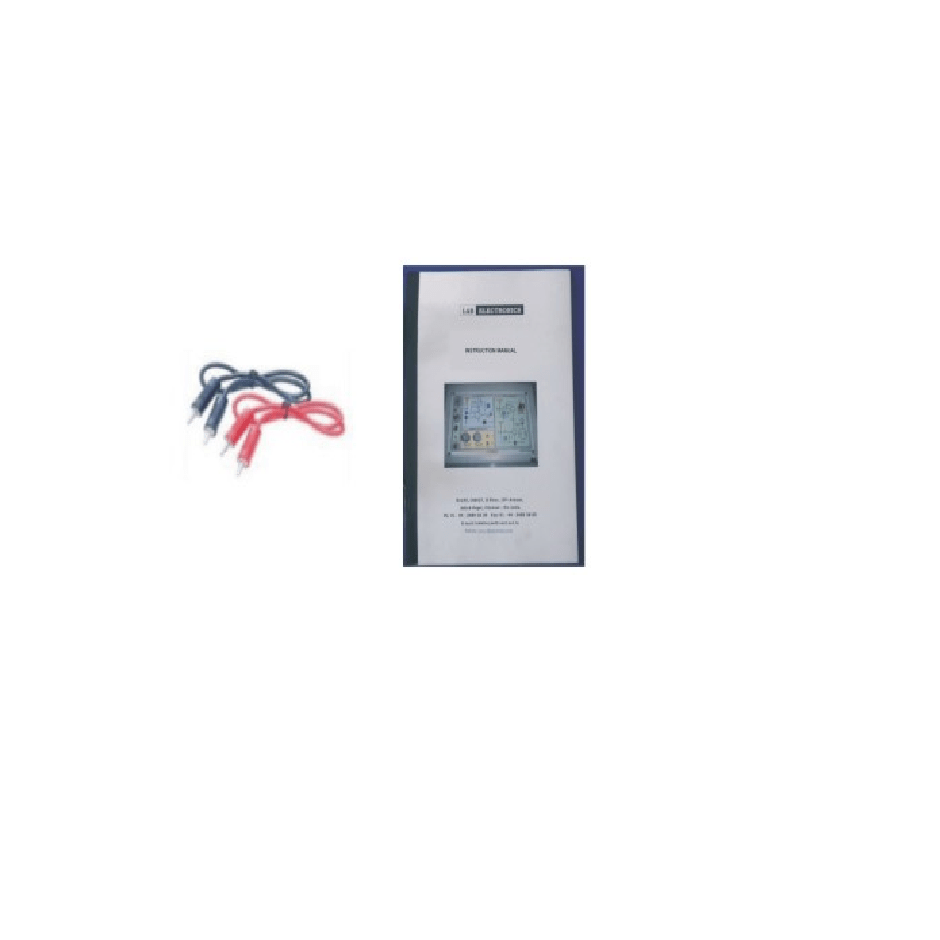

Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Weight : 500 Gm.

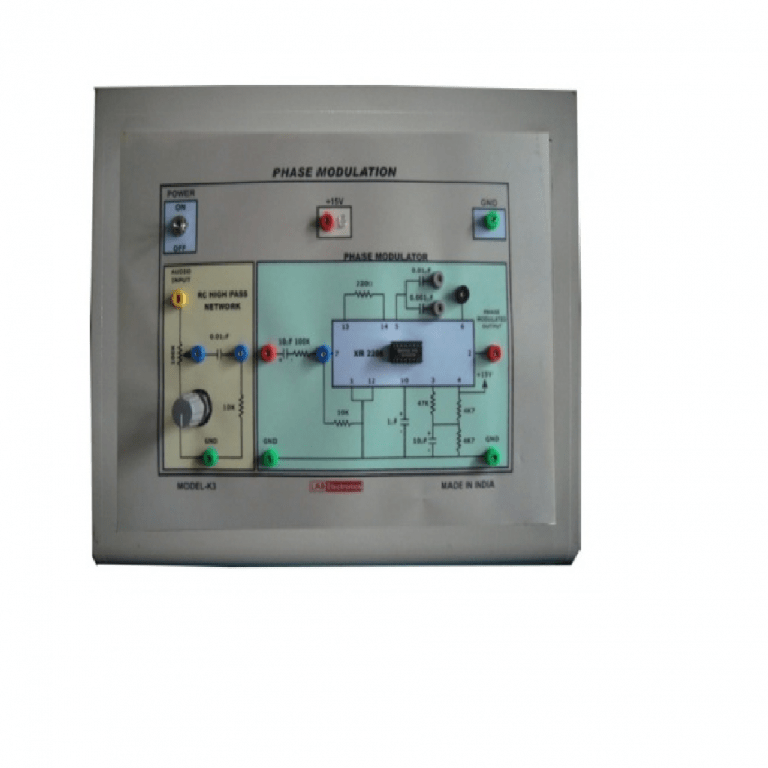

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily.
