Features:
• Dual /tri band 900/1800/1900 MHZ GSM
• Data, SMS (Text & PDU), Fax, Voice and GPRS
• DC input voltage
• Fully compliant with ETSI, GSM Phase 2+specifications
• Low power consumption
• AT Commands
• 1.8v & 3V SIM Interface
• RS-232 interface (9 PIN ‘D’ type female)
• Connectivity GSM / GPRS
Specifications
o Module Dual/Tri band GSM 900/1800/1900MHz with class 10 GPRS
o Output Power Class 4 (2W for GSM 900)
o Class 1 (1W for GSM 1800)
o SMS Supports Text and PDU mode, Point to Point & Cell Broadcast
o Data Data circuit Asynchronous and non transparent upto 14.4 kbps
o Autobaud rate (2400, 4800, 9600. 19200, 38400, 57600 bps)
o Fixed baud rate (300, 600, 1200, 9600, 115200 bps)
o Fax Automatic fax group 3 (Class 1 & 2)
o Modem compatibility V.29, V.27 (TER and V.21Ch II)
o PC Fax compatibility CCITT, G3
o GPRS Packet Data Feature Class 10
o Coding Scheme CS1 to CS4, embedded TCP/IP Stack
o AT Commands Interface GSM 07.05 and 07.07
o Connectors RS-232 Serial, DC Power socket
o SMA Antenna connector, SIM Card Holder
o Power Adaptor Input 7.2V DC 1.5A
o LED Indications Power ON, Network
o Antenna SMA Rubber /WHIP Antenna
List of Experiments:
• Study of GSM technology
• Getting started with GSM trainer
• Study of GSM MODEM and it’s components
• Introduction to AT commands
• Modem Commands Execution through AT commands from PC
• Data communication using AT commands from PC
• Making call,attend the call and sending text message through microcontroller
Accessories:
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.

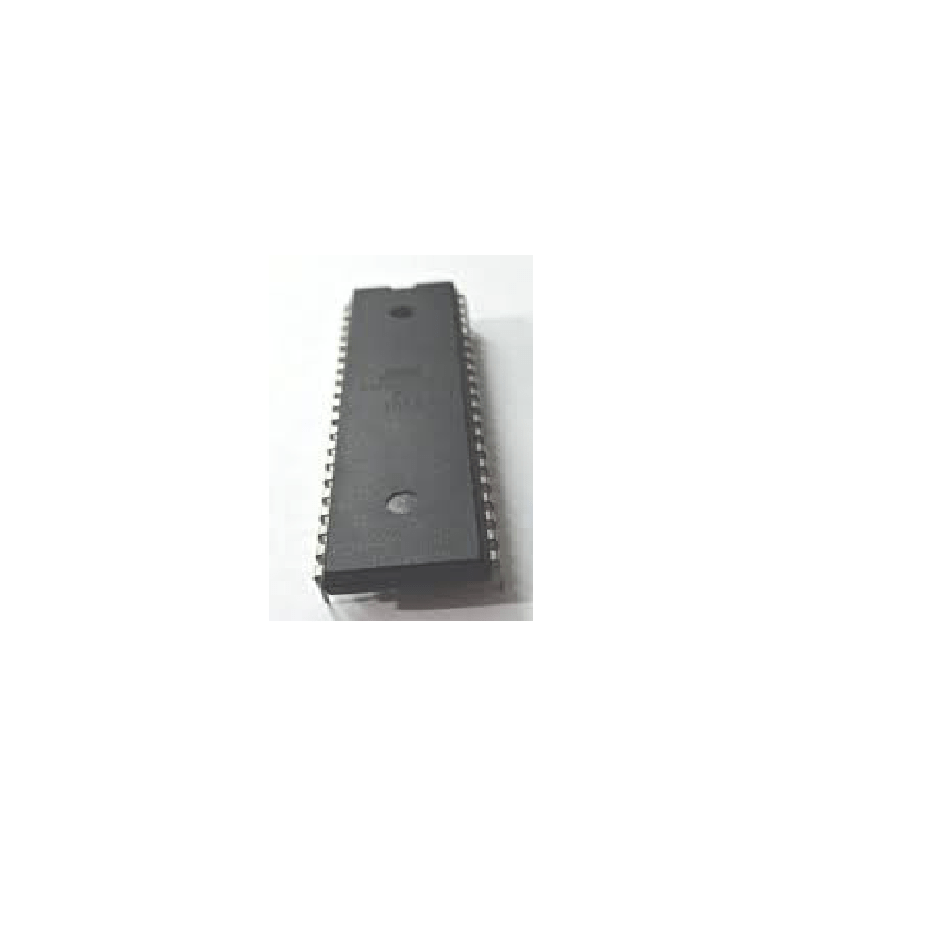

• Microcontroller

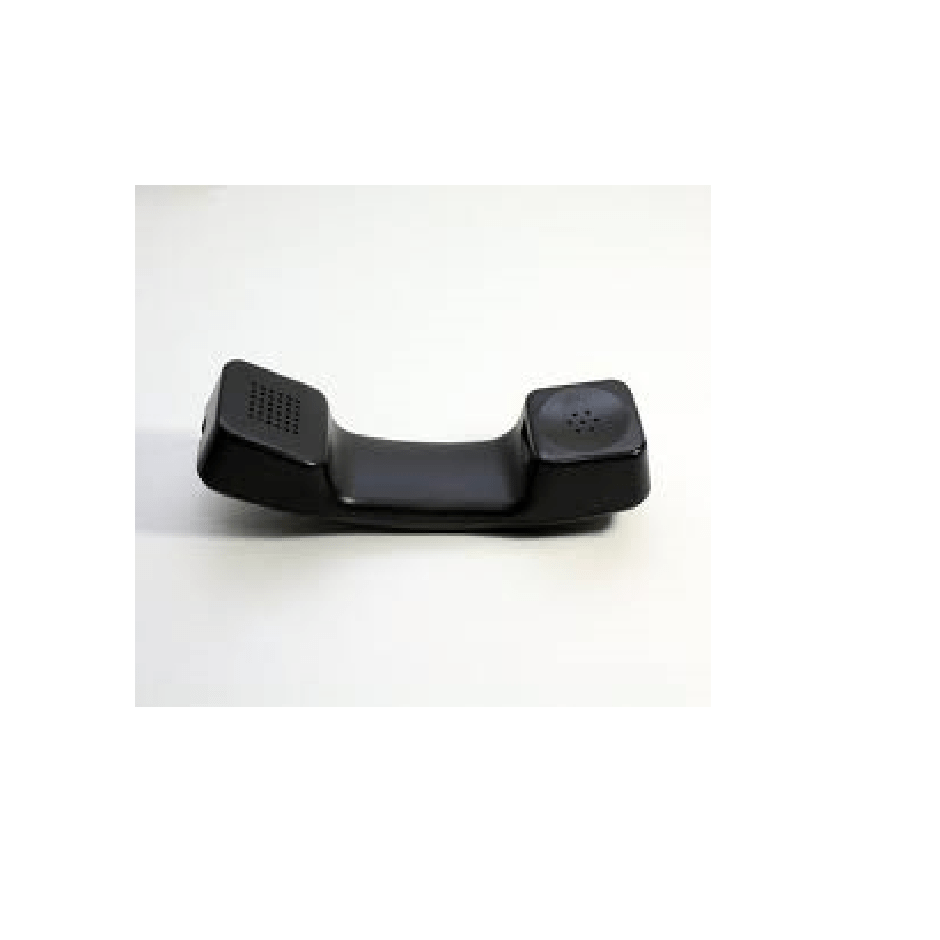

• Telephone hand set

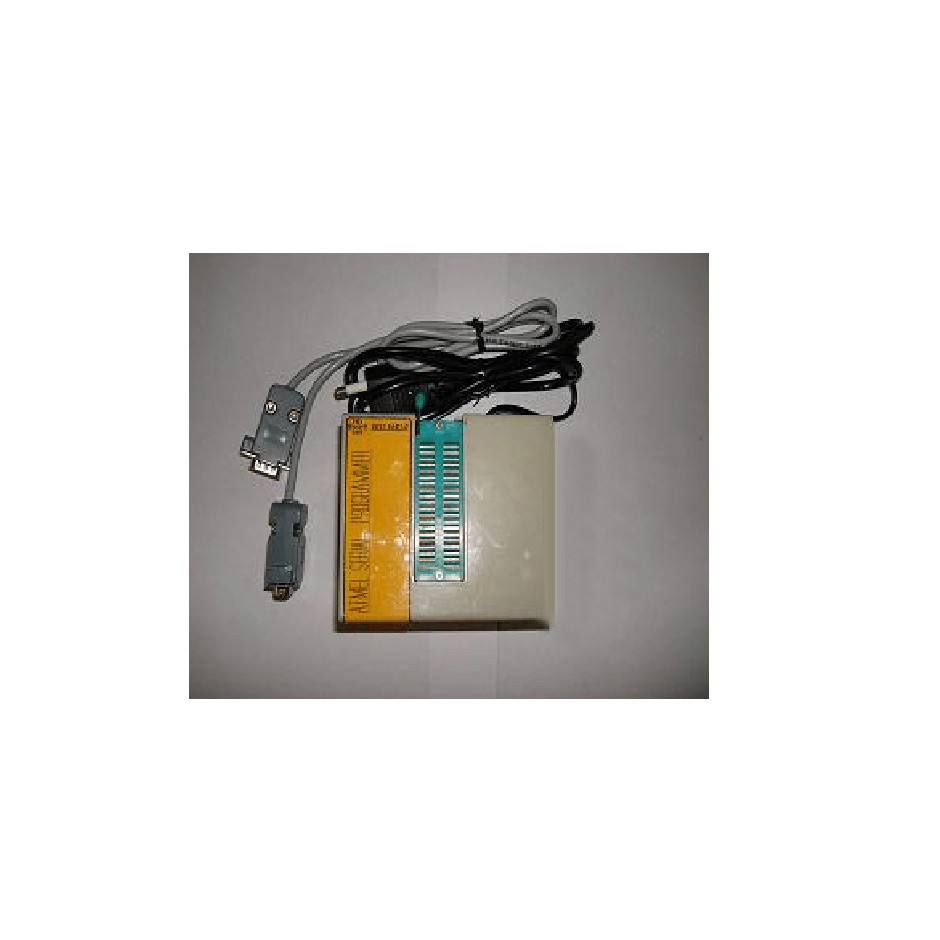

• Burner kit
• Software CD
Interface cables
