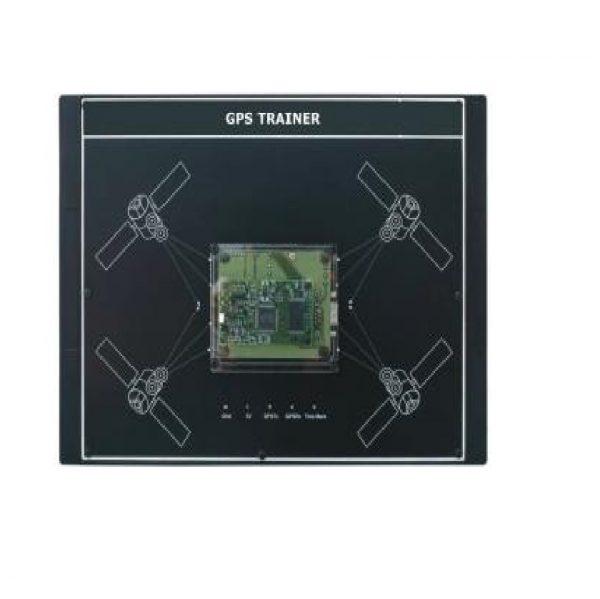

GLOBAL POSITIONING SYSTEM TRAINER
Category Special!
🚚 Delivery within 14 days
OBJECTIVES:
GPS Trainer will provide a basic understanding of the GPS Fundamentals, Satellites & Design Aspects of GPS Receiver by connecting to the Satellite by GPS Antenna.
EXPERIMENTS THAT CAN BE PERFORMED
• Introduction to GPS
• Establishing Link between GPS Satellite & GPS Trainer
• Measurement of Latitude & Longitude
• To Study the Effect of DOP
• Study of HDOP & VDOP
• Analysis of Elevation Azimuth SNR
• Study of PRN code
• Study of Common NMEA Sentence Protocol
Description
SPECIFICATION & FEATURES
| Channel |
12 |
| Frequency |
L1 C/A |
| Position Accuracy |
25 meters CEP without SA |
| Velocity Accuracy |
0.1 meters/second, without SA Off |
| Time Accuracy |
Synchronized to GPS time |
| Update rate |
1/sec. (1 PPS) signal |
| Receiver Sensitivity |
-175 dBW |
| Input Voltage |
+5VDC |
| Current (Avg.) |
180 mA |
| Serial Communication |
4800 Baud |
| Maximum Altitude |
18000 meters (60,000 Feet) max. |
| Maximum speed |
515 meters/sec. (1000 knots) max. |
| PC Interface |
RS 232 Port |
| Operating Temperature |
-40 deg.C to +85 deg.C |
