Features of the Trainer
Built in function generator
200Hz-2KHz
Built it regulated power supply
DC +5V/1A.
Power Supply
Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
Housing
It is mounted in a elegant CNC metal cabinet for better viewing.
Dimension
45cm x 45cm x 18cm
Weight
6 Kgs

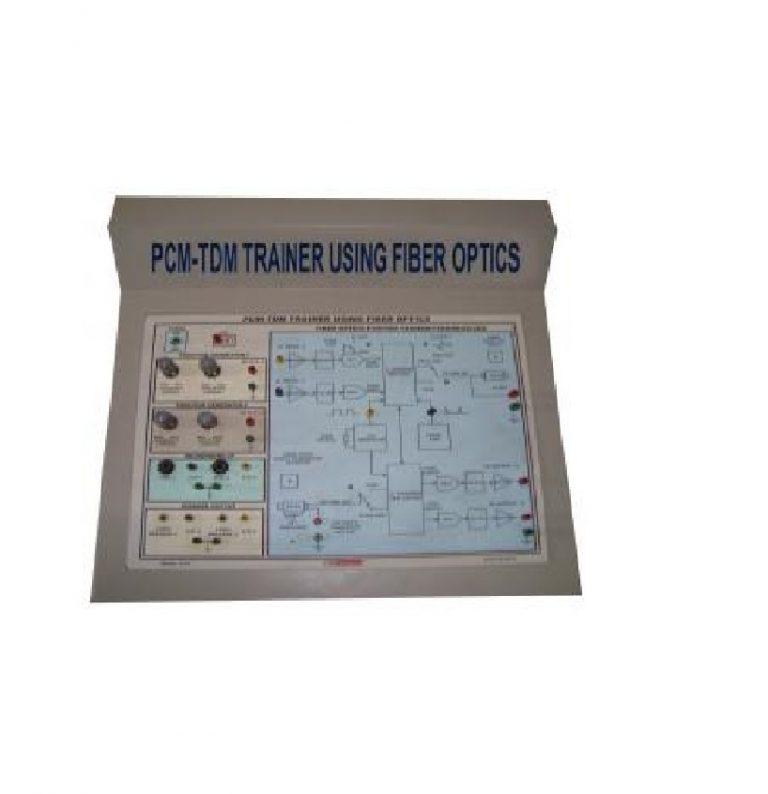

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
Accessories:

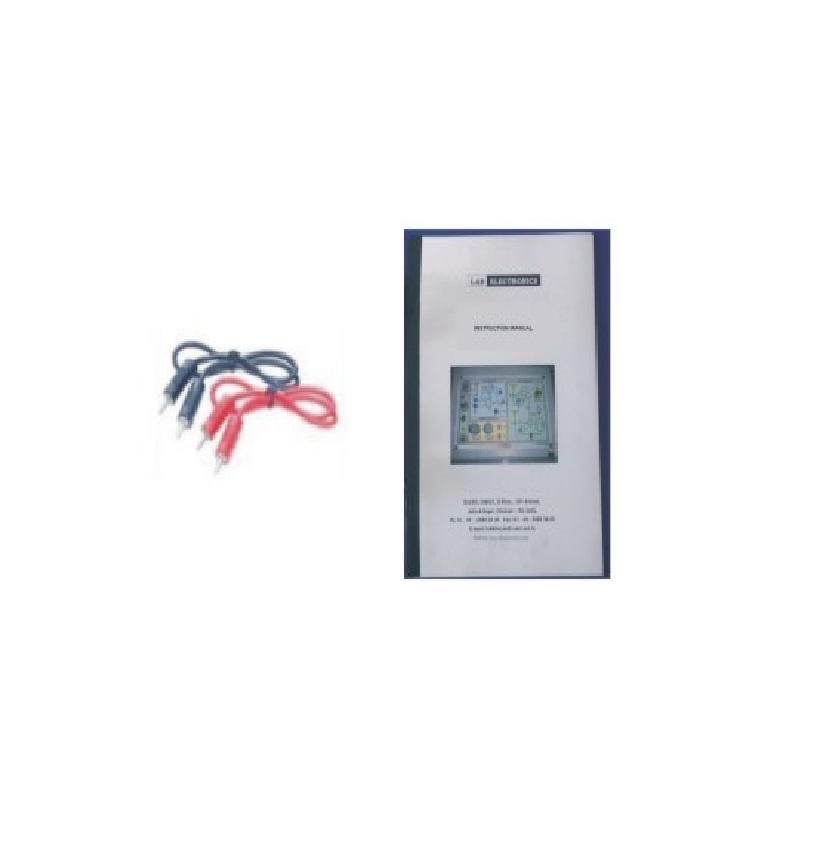

• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.

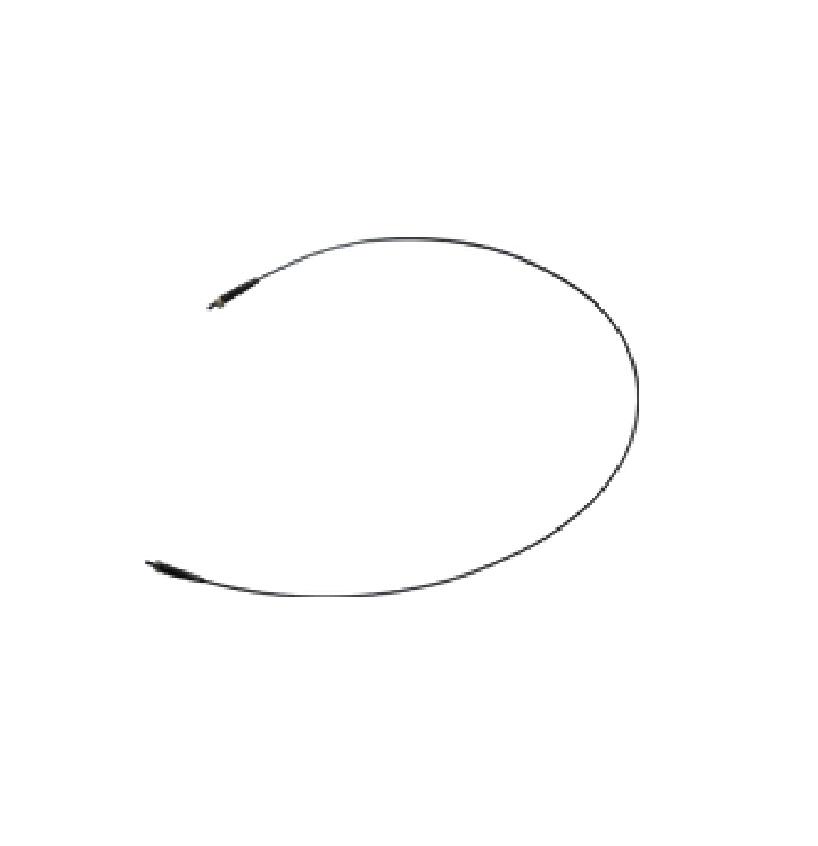

• Fiber optic cable, terminated with SMA connectors – 1meter.

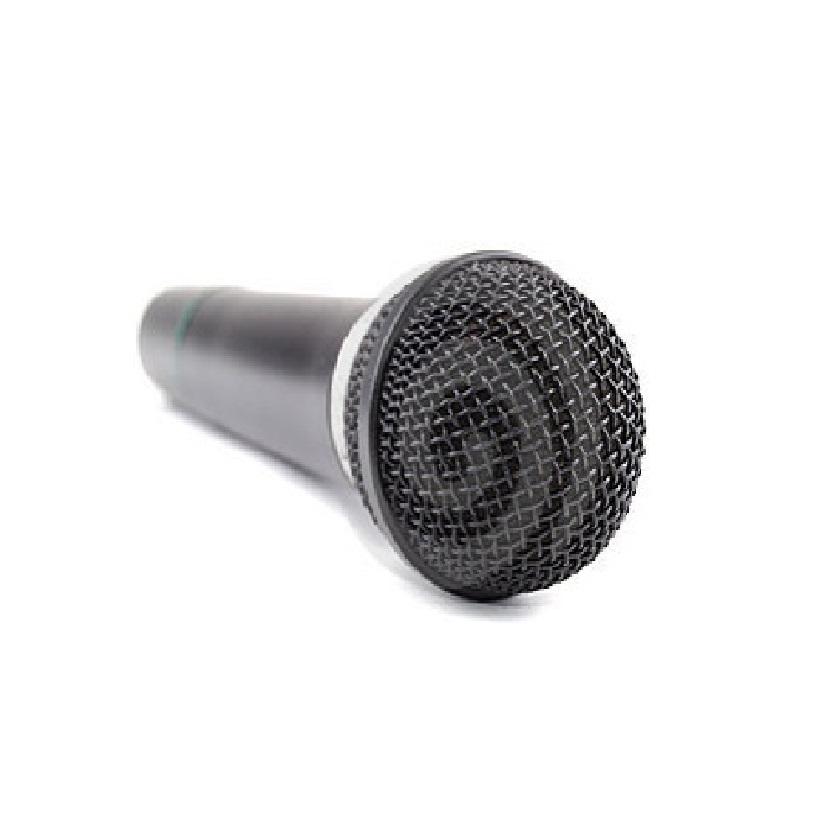

• MIC

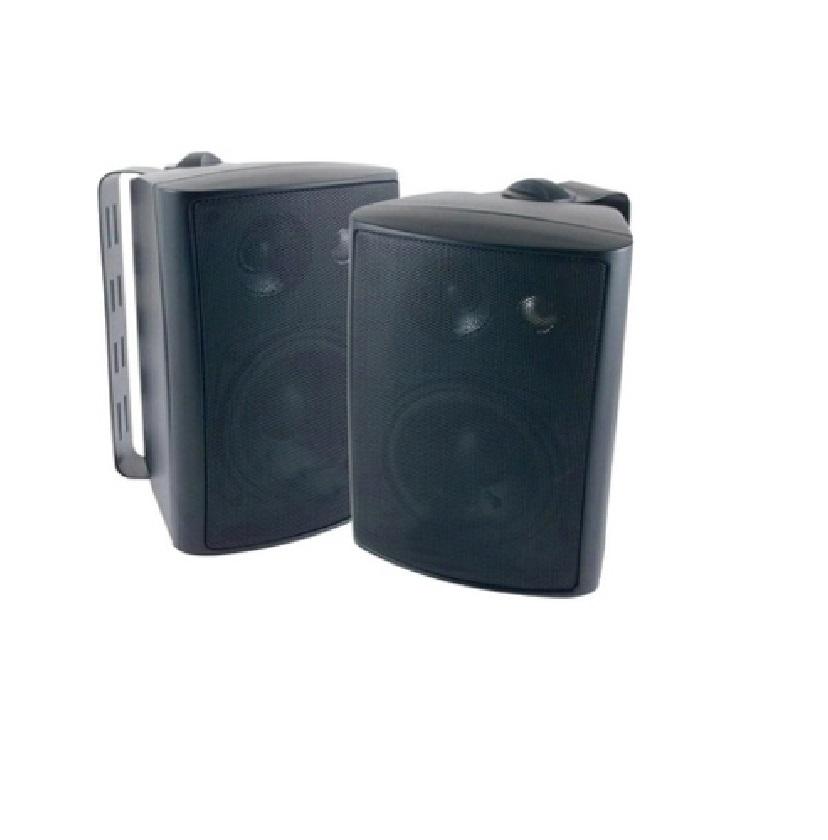

• Speaker
