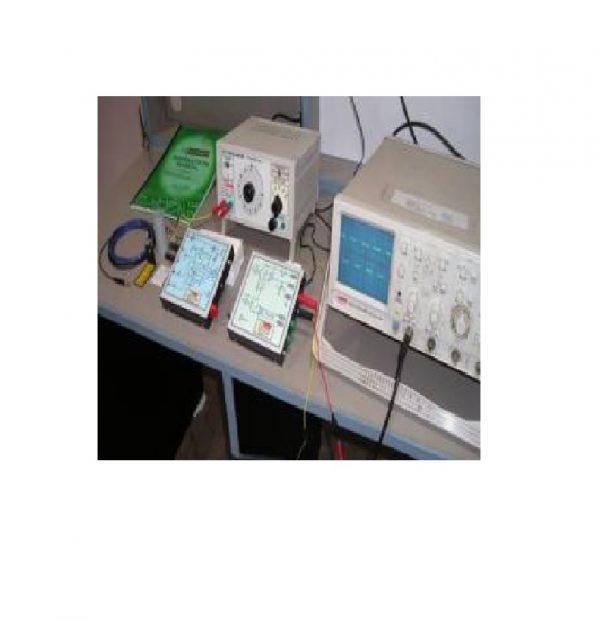

FO-8 TRANSMISSION OF LASER BEAM THROUGH AN OPTICAL

DESCRIPTION
•  The aim of the experiment is to study various types of losses that occur in optical fibers and measure the loss in dB of optical fiber patchcords individually and also connected in tandem using an in-line adapter.

In this experiment we will be studying the losses due to core differences and losses due to core mismatches. Loss as a function of length is not possible because the lengths under consideration are too small. Loss as a function of wavelength is not possible; as we have only one source. The patchcords designated for the experiments are as follows:
Cable
2-meter PMMA SI/MM (BLACK Jacket)
Cable
2-meter 100/140 GI/MM (GREEN Jacket)
Cable
2-meter 62.5/125 GI/MM (GRAY Jacket)
• The experiment may be repeated for other patch cords if available.

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer
Power supply
Voltage range : AC 100V – 230 V
Frequency range : 50 – 60Hz
Housing
It is housed in sloping an elegant metal cabinet(CNC machine finish)
Dimension
29cm x 20cm x 11cm
Weight
1.5kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily

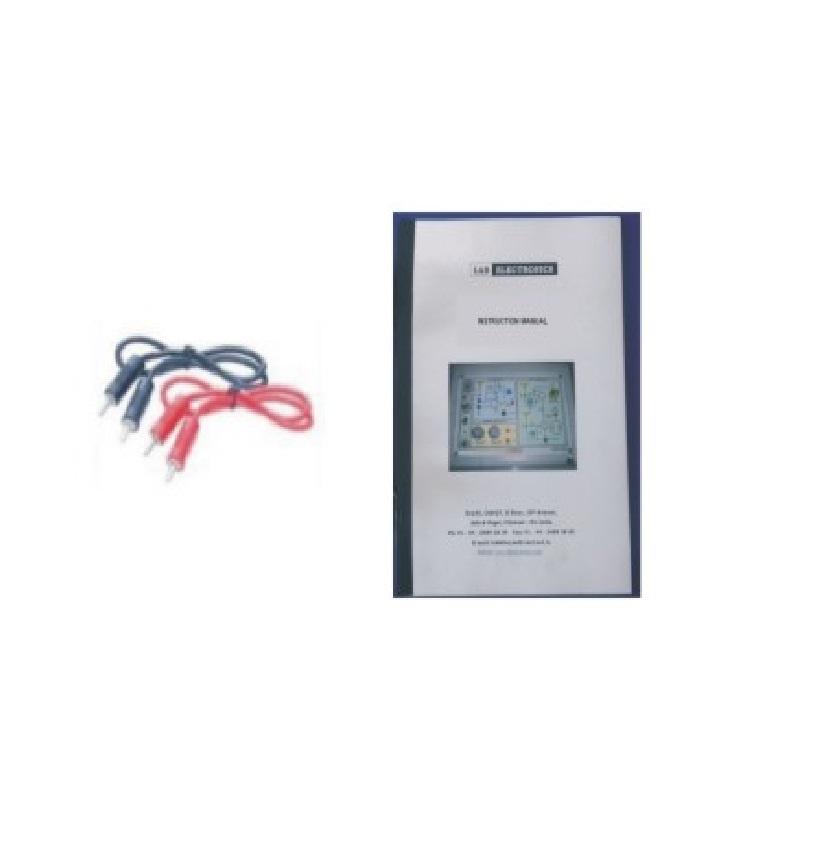

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Step-By-Step detailed instructions are provided with the instruction manual.
• Fiber optic cable terminated with SMA connectors – 2 meters.
