Features of the Trainer
Built in Regulated Power Supply
DC +5V,-5V/500 mA.
Power supply
Voltage range : AC 100V – 230 V
Frequency range : 50 – 60Hz
Electrical: Modulation Scheme
Direct Intensity
Modulation Bandwidthtr
8 MHz
Input /Output Impedance
50 or 75 ohms
Vin / Vout Levels
1 Vp-p
Optical:Wavelength
850 nm.
Micron PMMA Fiber
-15 dBm (min)
Cable Length
2 meters
Connector Type
SMA (Sub Miniature Assembly) Power Coupled into 960/1000

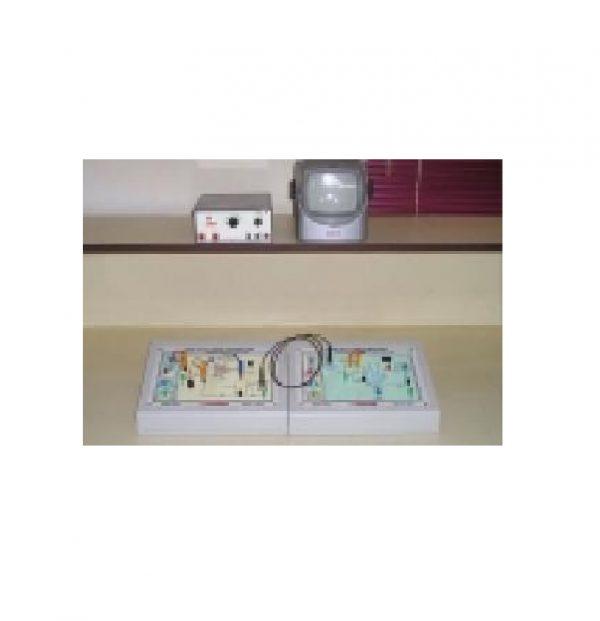

Fiber Optics Video Transmitter
The fiber optics video transmitter employs the direct intensity modulation method. The LED optical output is fairly linear over a region of the LED forward current. By employing a current feedback operational amplifier, a large bandwidth linear current driver for the LED is realized, covering the full range of the video signal.
Fiber Optics Video Receiver
The optical demodulator comprises a low-noise trans-impedance amplifier followed by a Wide band RF amplifier
Housing
It is mounted in an elegant ABS Plastic cabinet for better viewing and portability
Dimension
29cm x 20cm x 11cm (each)
Weight
1.5kgs (each)
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily

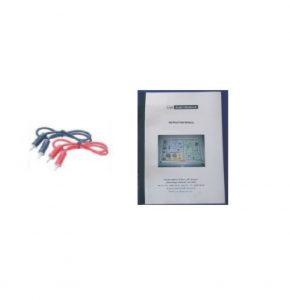

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Step-By-Step detailed instructions are provided with the instruction manual.

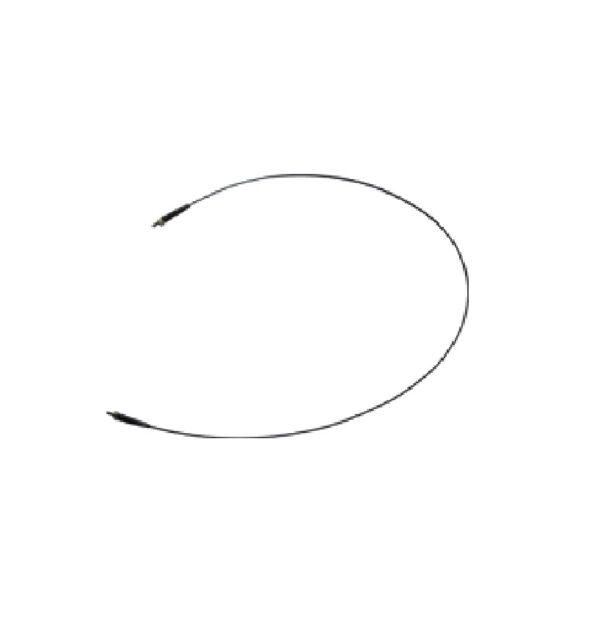

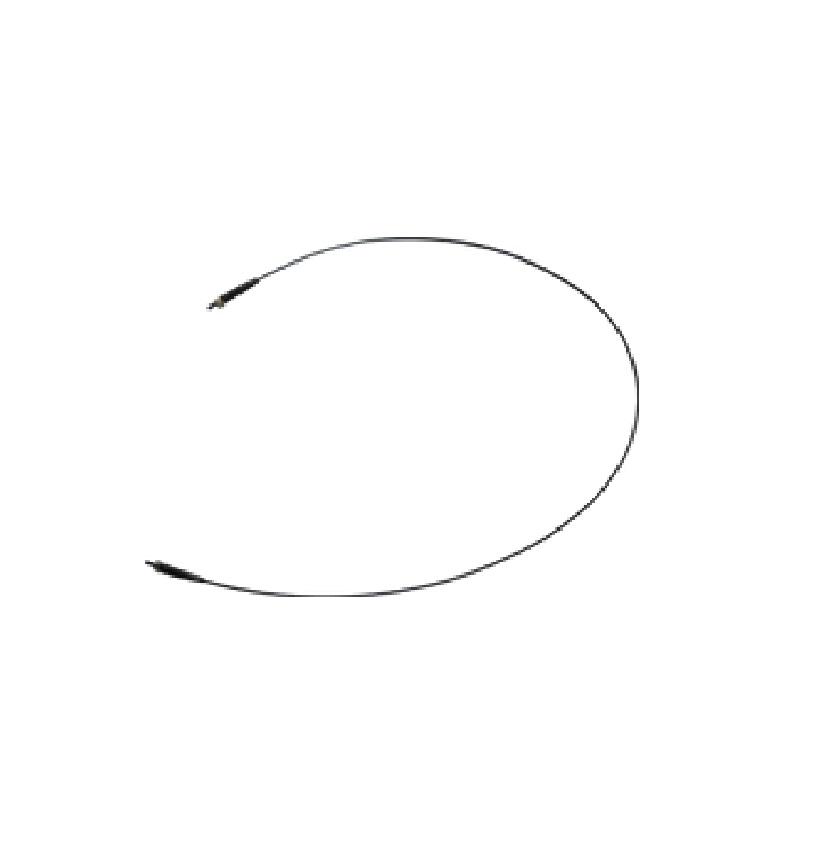

• Fiber optic cable terminated with SMA connectors – 2 meter.
