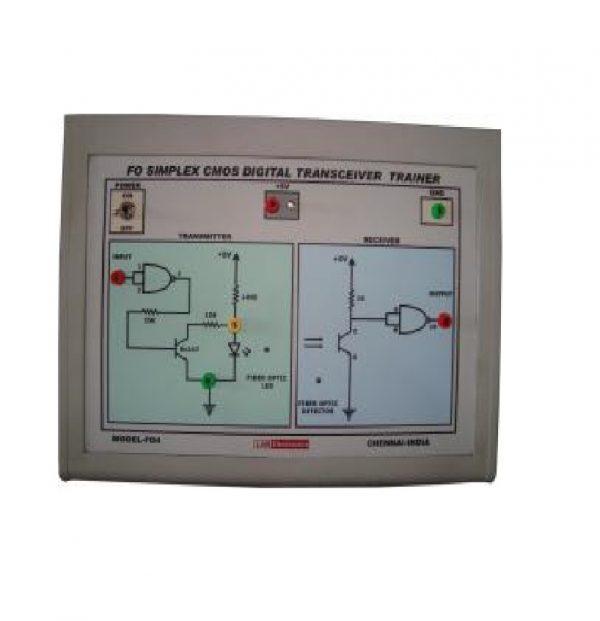

FO-4 FIBER OPTICS SIMPLEX CMOS DIGITAL TRANSCEIVER TRAINER

DESCRIPTION
• This trainer comes with three components, namely, an SMA connectorised 660 nm FO LED, a matching phototransistor and an SMA-connectorised one-meter optical fiber PMMA fiber patch cord.
• CMOS Transceiver Module is to transmit and receive CMOS driven waveforms/signals via the optical fiber medium.
• This trainer is supplied as a fully assembled and tested, single-sided glass epoxy printed circuit board (PCB).
• To make the system operational, a regulated power supply of +5 Vdc and a CMOS/TTL compatible signal source are provided.
• An oscilloscope will also be required to study the signals.
• Some components have been mounted on the trainer, to facilitate easy change, by the user, to achieve desired performances.
• Speeds in excess of 100 KHz and distances over 20 meters can be achieved. The realization of a fiber optics digital transmission trainer using a CMOS Transceiver Module, The optical output from the LED is looped back to the detector via the PMMA patch cord. Some of the studies one can carry out on the trainer are:
• DC characteristics of transmission system (ILED vs Ip)
• Rise-time pulse width distortion (ILED vs Trise)
• Fall-time pulse width distortion (ILED vs Trise)
• Propagation delay Tp and Optimum Po for minimum pulse width distortion. This trainer is fully assembled and tested, single sided glass-epoxy PCB of with multi-colour legend printing and necessary test points are provided for measurement and terminals are provided for patching the circuit. Detailed step-by-step instruction manual will be provided along with the trainer.

Categories ,
Add To Compare
View Compare
Add To Wishlist
View Wishlist

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

Features of the Trainer
Built in Regulated Power Supply
DC +5V/300 mA
Power supply
Voltage range : AC 100V – 230 V
Frequency range : 50 – 60Hz
Housing
It is mounted in an elegant ABS Plastic cabinet for better viewing and portability
Dimension
29cm x 20cm x 11cm
Weight
1.5kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Step-By-Step detailed instructions are provided with the instruction manual.
• Fiber optic cable terminated with SMA connectors – 1 meter.
