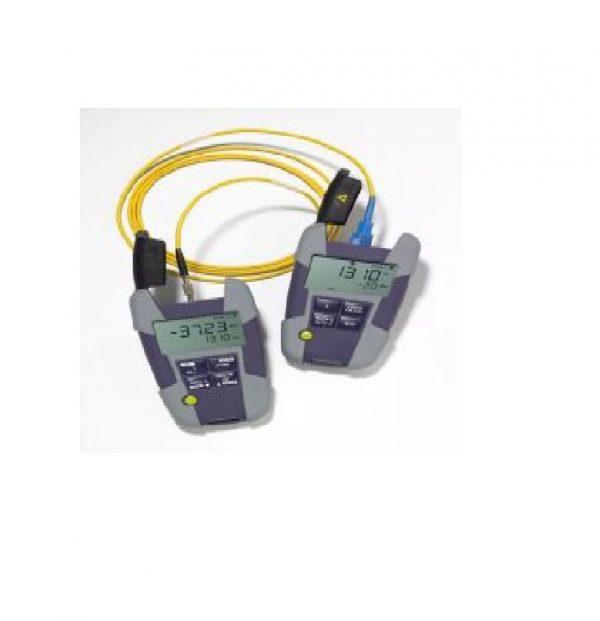

FO-12 OPTICAL POWER METER
Category Special!
🚚 Delivery within 10 days
Introduction:
• The OPM is a hand held optical power meter that measures the power of light emanating from an optical fiber.
• It uses a silicon detector for improved sensitivity & temperature stability.
• The detector & associated circuitry are all enclosed in an encapsulated module with SMD components to achieve a high degree of reliability & compactness.
• Industry standard fiber optic SMA connector is provided for rugged & consistently repeatable operations.
• Two calibrated wavelength settings are provided namely 660nm & 950nm. The unit is powered by a 9V Battery.
Description
Features of the Trainer:
| Detector |
Silicon detector |
| Range |
0 dB m to – 60 dB m |
| Display |
12mmLCD |
| Wavelength |
660 & 950 nm |
| Connector |
SMA |
| Accuracy |
1 dBm 1 digit. |
| Out of Range readings below |
60dBm are shown as out of range |
| Power |
9V Battery |
| Input Supply |
230 V AC/50Hz mains operated |
| Housing |
It is mounted in an elegant cabinet for better viewing and portability |
| Dimension |
27cm x 17cm x 10cm |
| Weight |
500gm |
| Instruction Manual |
Step-By-Step detailed instruction manual. |
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
