Features of the Trainer
Maximum Output
3.0Mw
Wave Length
670nm (10nm)
Beam Diameter
4mm x 0.65mm
Beam Divergence
0.7mrad
Power Supply
Voltage range : AC 100V – 230V.Frequency Range : 50 – 60Hz.
Build in Power Supply
DC +9V/1A
Operating Time
6 – 8 hours
Switch
Momentary On/Off
Housing
It is housed in an elegant metal cabinet(CNC Machine finish) for better viewing and portability
Dimension
45cm x 45cm x 18cm
Weight
6kgs
This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily

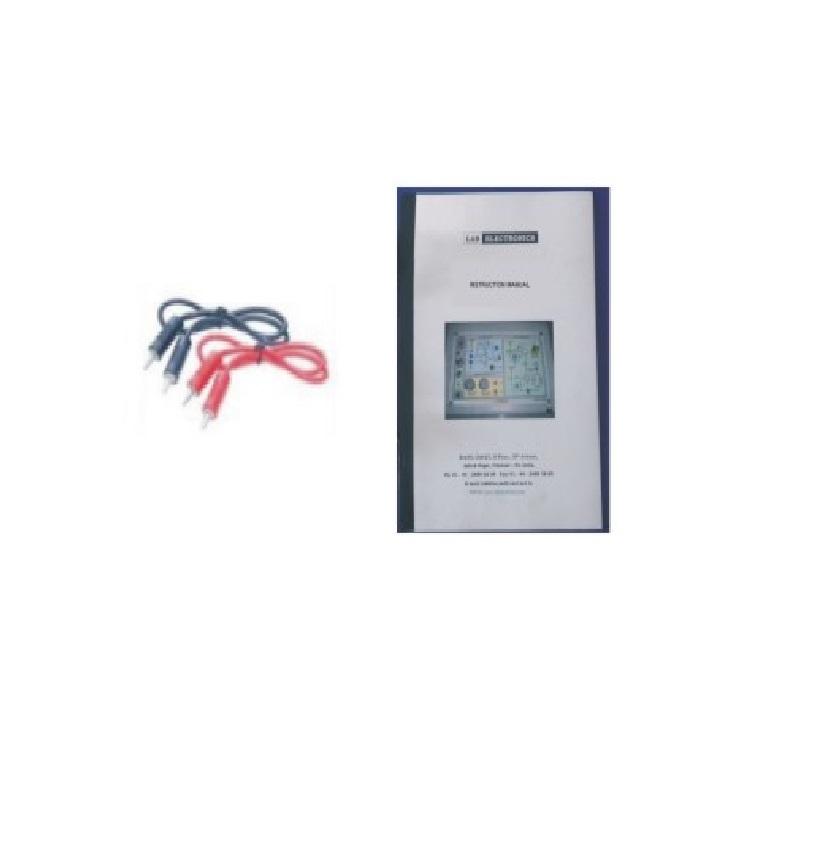

Accessories:
• 2mm multi coloured moulded patch cords with daisying facility.
• Computer simulated outputs and Step-By-Step detailed instructions are provided with the instruction manual.
• Fiber optic cable, terminated with SMA connectors – 1meter.
• Mic
