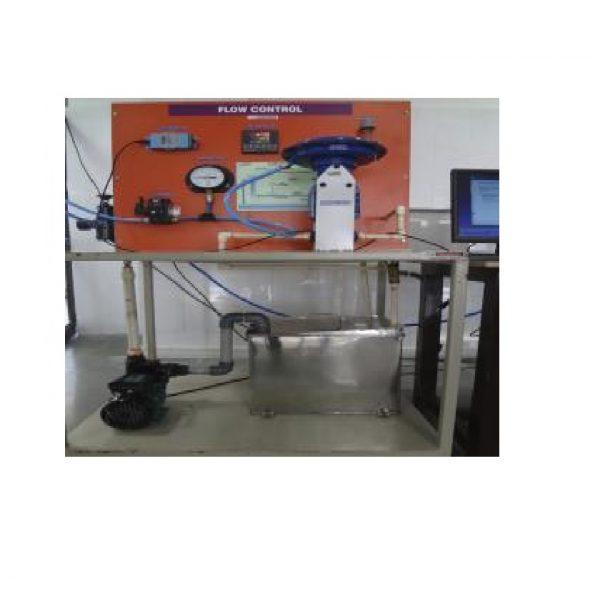

FLOW CONTROL TRAINER

Description

FEATURES:
• System works on 230V AC
• ‘Honeywell’ make PID is used
• System controls ON-OFF through PID.
• Pre set levels can be Auto tuned.
• Interfacing Hardware and Software with USB to study SCADA operations
• MODBUS communication
• Multi drop and point to point Communication
• Server-Client communication
• Centrifugal pump of 0.75 HP is used
• System is Floor mounted, on wheels
• Dimensions: W: 800 mm, Ht: 1400 mm, D: 650 / 350 mm
Range of experiments:-
• Study of proportional controller
• Study of proportional integral controller
• Study of proportional derivative controller
• Study of proportional integral derivative controller
• Tuning of controller (Closed loop method)
• Tuning of controller (Using Auto Tuning method)
