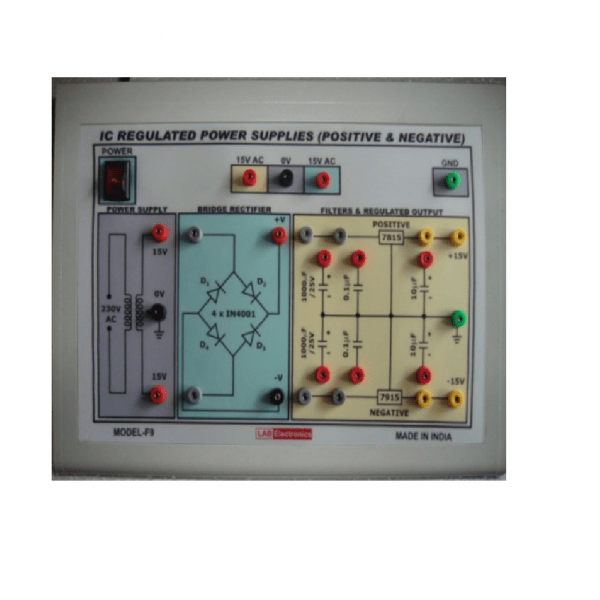

F-09 IC REGULATED POWER SUPPLIES (POSITIVE & NEGATIVE)

 3,950.00

To investigate the operation and characteristics of the fixed positive and negative voltage regulator using IC-Regulator (Modern Voltage Regulators7815 and 7915).

Categories ,

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

FEATURES OF THE TRAINER:

Built in regulated power supply 15-0-15v AC/300 mA.

Instruction Manual : Step-By-Step detailed instruction manual.

Dimension : 27cmX 17cm X 10cm

Input Supply : 230V AC/50 Hz mains operated

Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.

Weight : 500 Gm.

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
