SPECIFICATIONS:-
• True industrial universal Hybrid controller
• Configuration using Function blocks
• Modbus/TCP and Modbus RTU for control network
• Ethernet and Serial OPC server
• SCADA Package
• Panel for input simulation
• Easy interfacing with existing process plants
• 4Relays of 24VDC for Digital output
• Inbuilt powering for all AI, DI & DO
RANGE OF EXPERIMENTS:-
• Study of Hybrid controller
• Study of SCADA software
• Study of Ethernet network communication with hybrid controller.
• Study of OPC communication
• Study of modbus communication
• Study of batch process control (simulated I/Os from control panel)
• Study of continuous process control (simulated I/Os from control panel)
• Control of existing processes.
FEATURES:
• System works on 230V AC

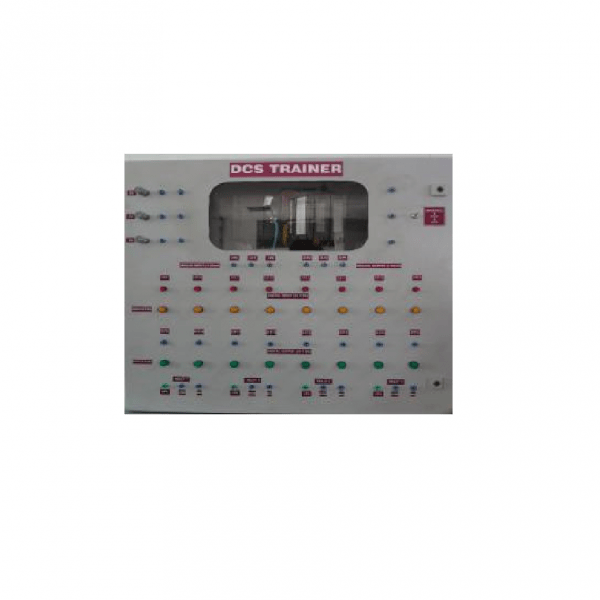

• ‘Honeywell’ make HC900-C30 controller is used
• Interfacing Hardware and Software with Ethernet to study SCADA operations
• System is Table mounted
• System configured using ‘RITTAL’ cabinet
• Dimension: W: 760 mm, Ht: 760 mm, D: 350 mm
