D-18 CLASS ‘C’ AMPLIFIER
Category Special!
🚚 Delivery within 10 days
• To construct a tuned class C amplifier and to obtain selectivity & voltage gain of the amplifier
• Selectivity is necessary to ensure that frequencies outside the wanted band are not amplified to some extent using a (LC) parallel resonant circuit acting as the collector load for transistor.
• Calculate the voltage gain at higher frequencies and to draw the graph between gain versus frequency.
Description
FEATURES OF THE TRAINER:
Built in regulated power supply : +15v /300 mA.
Instruction Manual : Step-By-Step detailed instruction manual.
Dimension : 27cmX 17cm X 10cm
Input Supply : 230V AC/50 Hz mains operated
Housing : Enclosed in an elegant plastic injection molded cabinet for better viewing & portability.
Weight : 500 Gm.

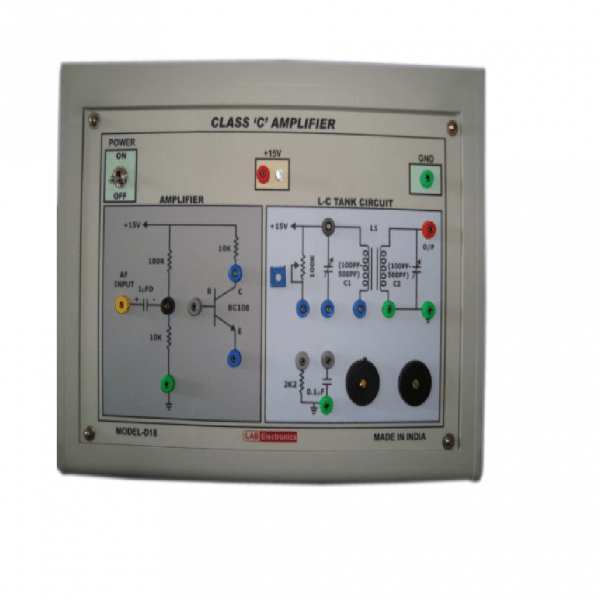

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
