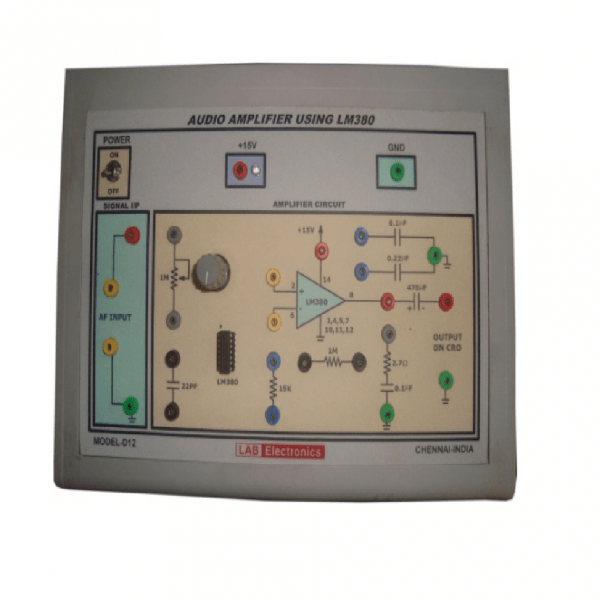

D-12 CONSTRUCTION OF AUDIO AMPLIFIER USING LM380

 3,950.00

Using LM380 you will construct positive feedback amplifier, negative feedback

amplifier and vary the voltage gain and calculate the power gain.

Share this product

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on whatsapp

FEATURES OF THE TRAINER:

Built in regulated power supply : +15v /300 mA.

Instruction Manual : Step-By-Step detailed instruction manual.

Dimension : 27cmX 17cm X 10cm

Input Supply : 230V AC/50 Hz mains operated

Housing : Enclosed in an elegant plastic injection moulded cabinet for better viewing & portability.

Weight : 500 Gm.

This trainer is a glass-epoxy printed circuit board and all the symbols screen-printed on the front panel so that it enables the student to conduct the experiments easily
